123/Alfa-4-R complete system

123/Alfa-4-R complete system

€445.00

Instead of €458.00

VAT included

Now all parts in one order: a 123/Alfa-4-R distributor + coil + set of 4 spark plugs + spark plug wires.

This pack contains

Quantity
Add to Compare
In stock

Complete electronic ignition set for an Alfa Spider.

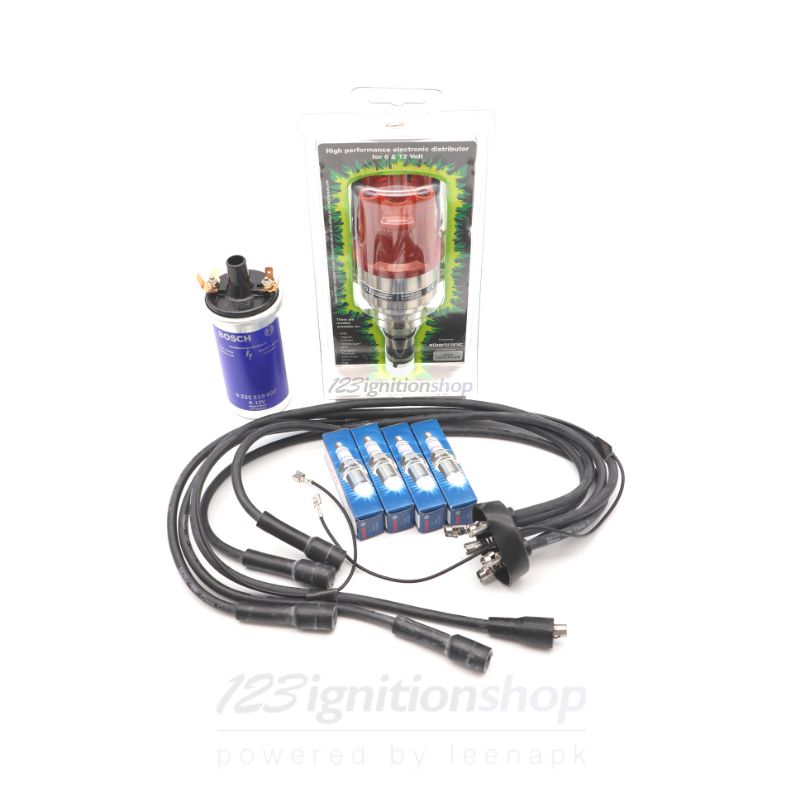

Now all parts in one order: a 123/Alfa-4-R distributor + ignition coil + set of 4 spark plugs + spark plug cables!

Contents of the set

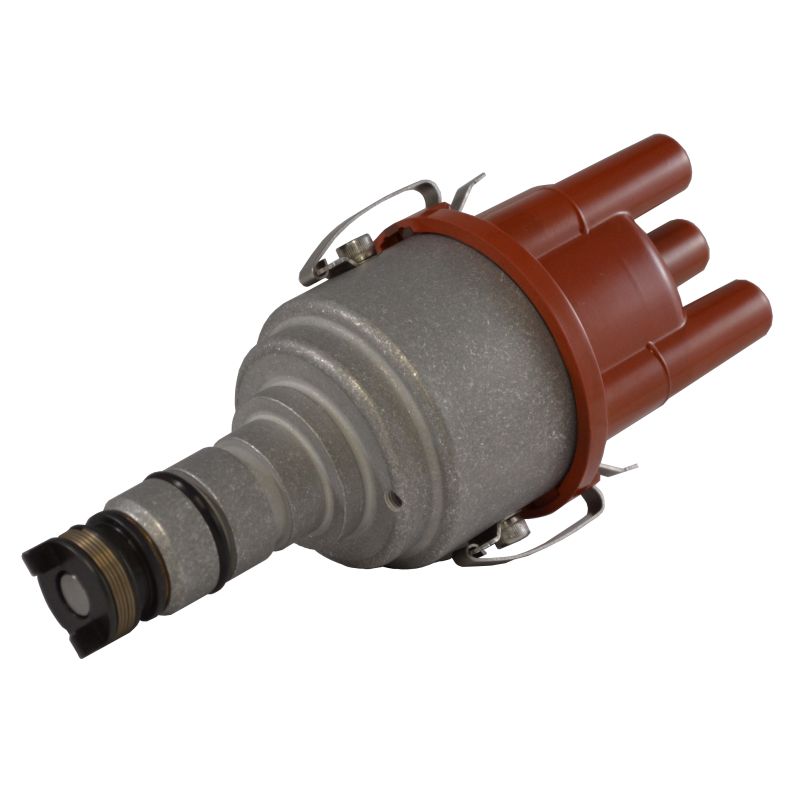

The 123/ALFA-4-R is specially designed for 4 cylinder Alfa Romeo engines without vacuum advance and is suitable for an Alfa Giulia, Giulia Nuova, Duetto, Spider and Bertone.

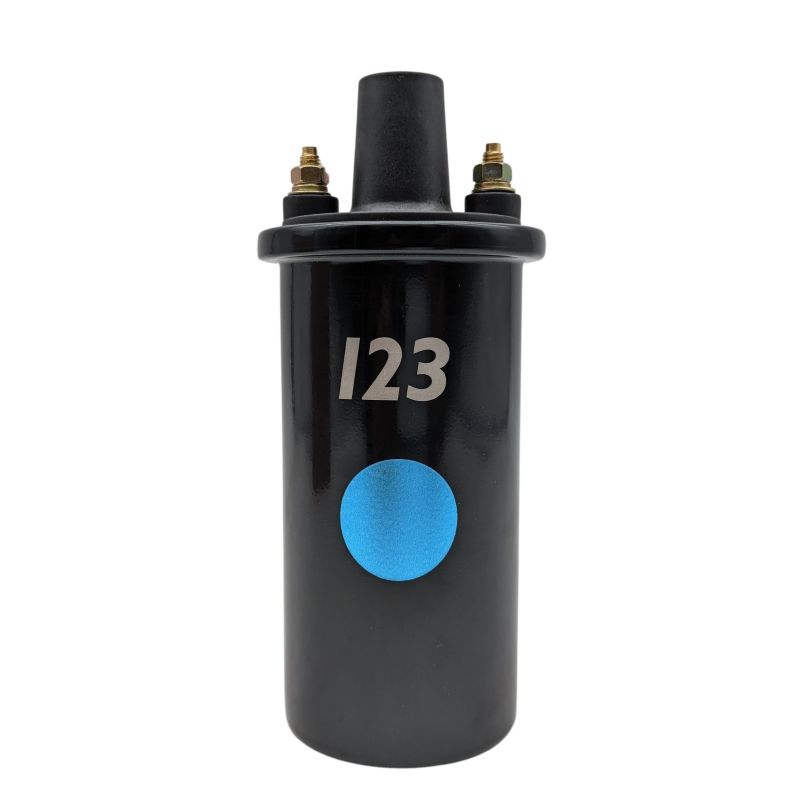

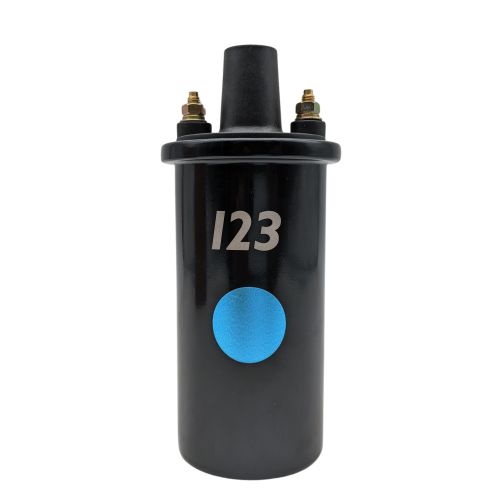

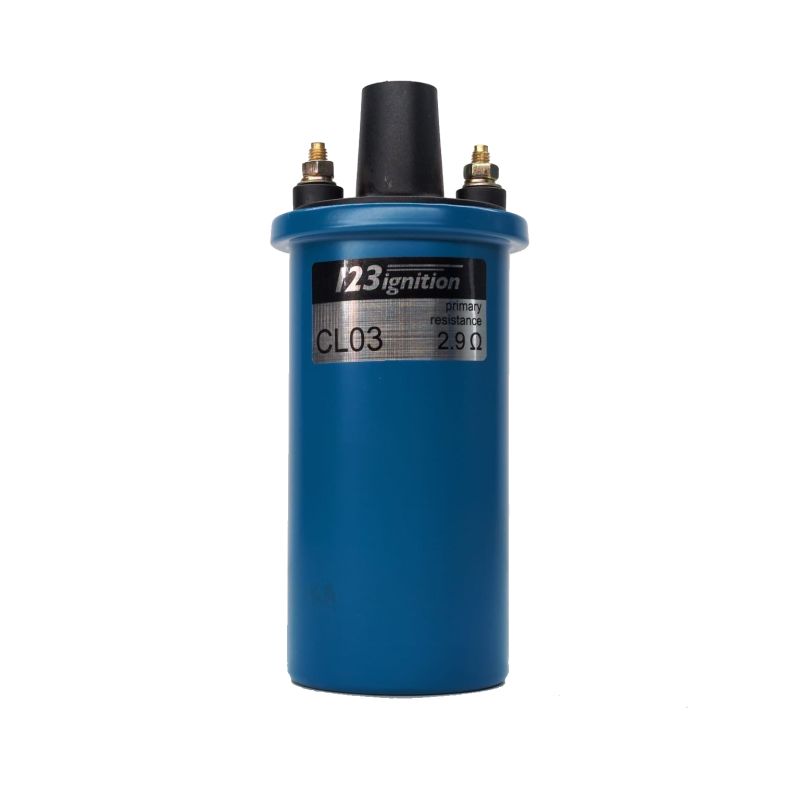

Because old ignition coils have often overheated, a 123 Blue Coil is included in this set.

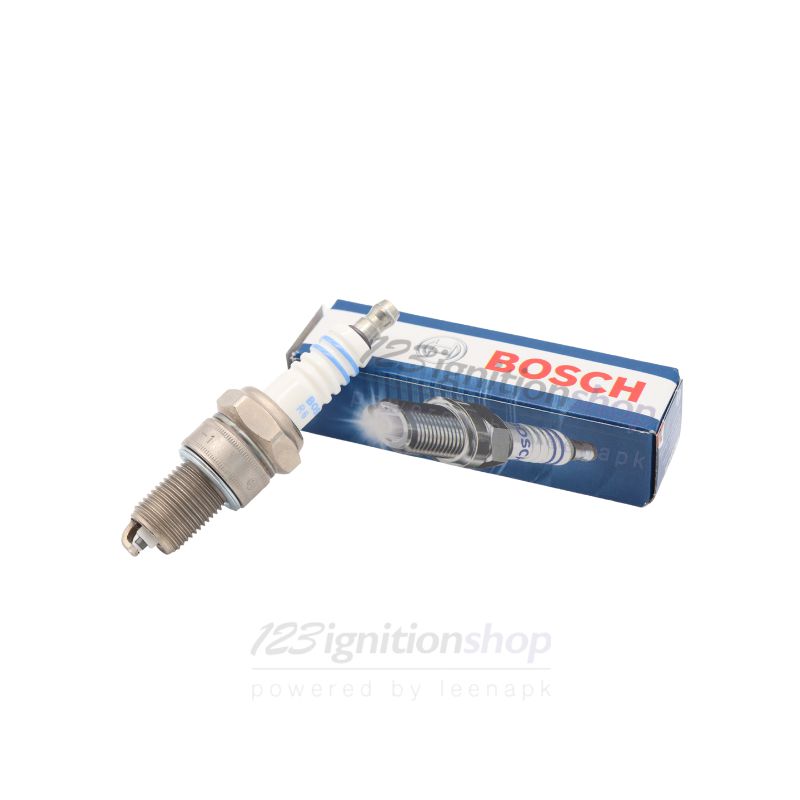

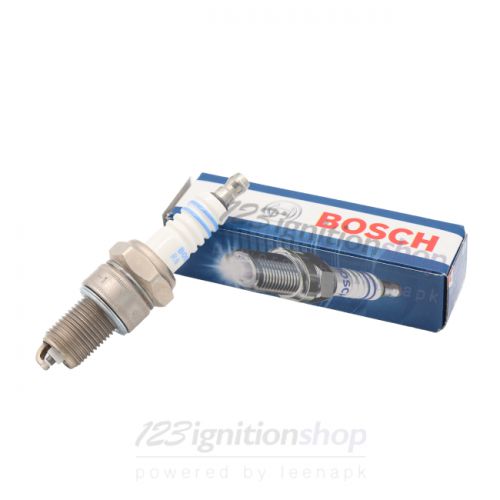

A set of 4 spark plugs and new spark plug cables have also been added.

Please note about the 123/Alfa-4-R electronic ignition

Please check that the length of the above spark plug wires and the type of spark plugs match what you need for your car.

Please read the installation manual carefully. The manual contains further information on engine and distributor numbers, ignition timing and advance curves, as well as 123 ignition specifications. The installation procedure of the 123 ignition system to be followed is also described step by step.

B802

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft
Wiring
red +6V of +12V, black - coil

No customer reviews for the moment.

Curve Advance starts
(rpm crankshaft)		 Max. advance
(rpm / degree crankshaft)		 Vacuum advance
starts (mmHg)		 Vacuum advance
ends (mmHg / degr.)		 Replaces Remark
0 1000 5000 / 25,0 260 380 / 10,0 0 231 129 036 Giulia Nuova 1300-1600
1 700 4200 / 32,0 260 380 / 10,0 0 231 110 045 Bertone 2000, Spider 2000
2 700 5000 / 38,0 260 380 / 10,0 0 231 112 060 Giulia TI
3 700 5000 / 38,0 260 380 / 10,0 0 231 112 065 Giulia TI
4 700 5000 / 37,0 260 380 / 10,0 0 231 110 041 Duetto 1600
5 700 5000 / 37,0 260 380 / 10,0 0 231 110 044 Giulia Sprint
6 700 5000 / 37,0 260 380 / 10,0 0 231 110 044 Giulia GT, Giulia GTA/C
7 700 5000 / 37,0 260 380 / 10,0 BOSCH JF4 Bertone 1750, Giulia Super 1300/1600
8 700 5000 / 37,0 260 380 / 10,0 0 231 110 032 Spider 1750
9 700 5000 / 37,0 260 380 / 10,0 0 231 110 034 Giulia Super
A 1000 5400 / 30,0 260 380 / 10,0 0 231 178 006 Alfa '72-'78
B 700 5000 / 37,0 260 380 / 10,0 0 231 110 044 same as #5
C 700 5000 / 37,0 260 380 / 10,0 0 231 110 044 same as #5
D 1000 4000 / 21,0 260 380 / 10,0 'tuning' -
E 700 4000 / 32,0 260 380 / 10,0 'shankle' #4255 -
F 500 5000 / 36,0 260 380 / 10,0 Marelli S103B S103BA S166A -
