• Pack
123/BMW-4-R-V complete system M10 5

123/BMW-4-R-V complete system M10 5

€529.00

Instead of €543.00

VAT included

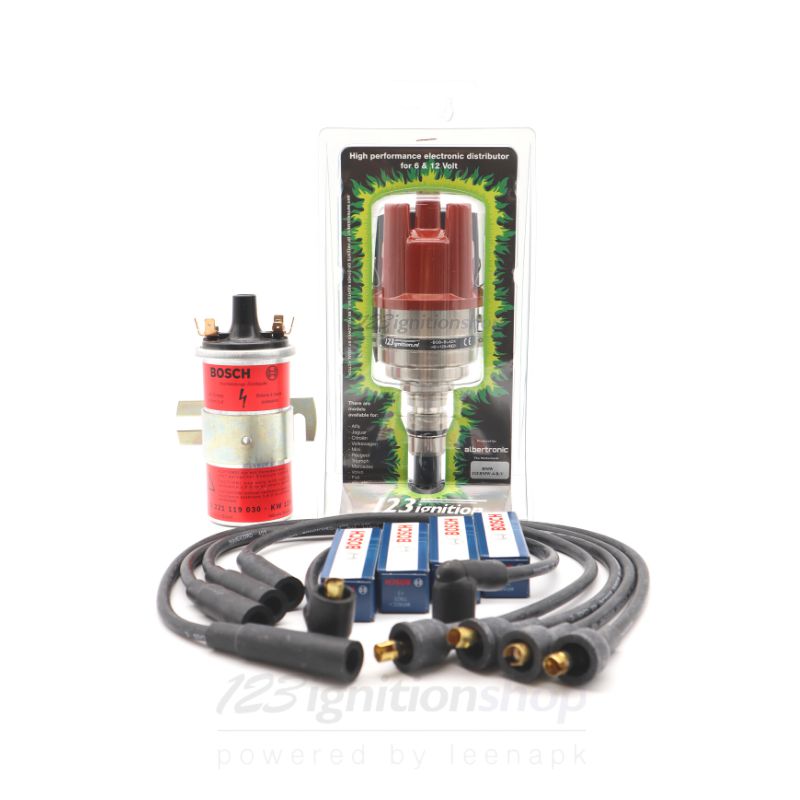

Now all parts in one order: a 123/BMW-4-R-V distributor + coil + set of 4 spark plugs + spark plug wires.

This pack contains

Quantity
Add to Compare
In stock

Complete electronic ignition set for a BMW.

Now all parts in one order: a 123/BMW-4-R-V distributor + ignition coil + set of 4 spark plugs + spark plug cables!

Contents of the set

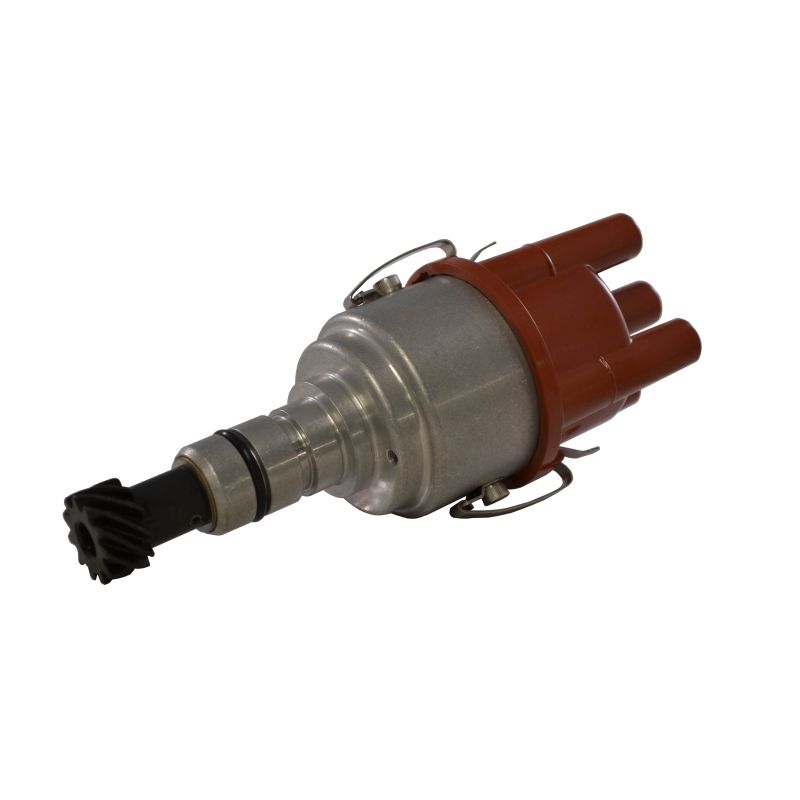

The 123/BMW-4-R-V is specially designed for 4 cylinder BMW engines WITH vacuum advance.

The cables suite:

  • 3 (E30) 315 M 10 B 16 09.82 - 10.83
  • 5 (E12) 518 M 10 B 18 07.74 - 05.81 64
  • 5 (E12) 518i M 10 B 18 08.79 - 08.81 17036
  • 5 (E12) 520 M 10 B 20 08.72 - 08.77 209
  • 5 (E12) 520 i M 10 B 20 10.75 - 05.77 6838
  • 5 (E12) 520 i M 10 B 20/M 10 B 20 08.72 - 10.75

Because old ignition coils have often overheated, a 123 Red Coil is included in this set.

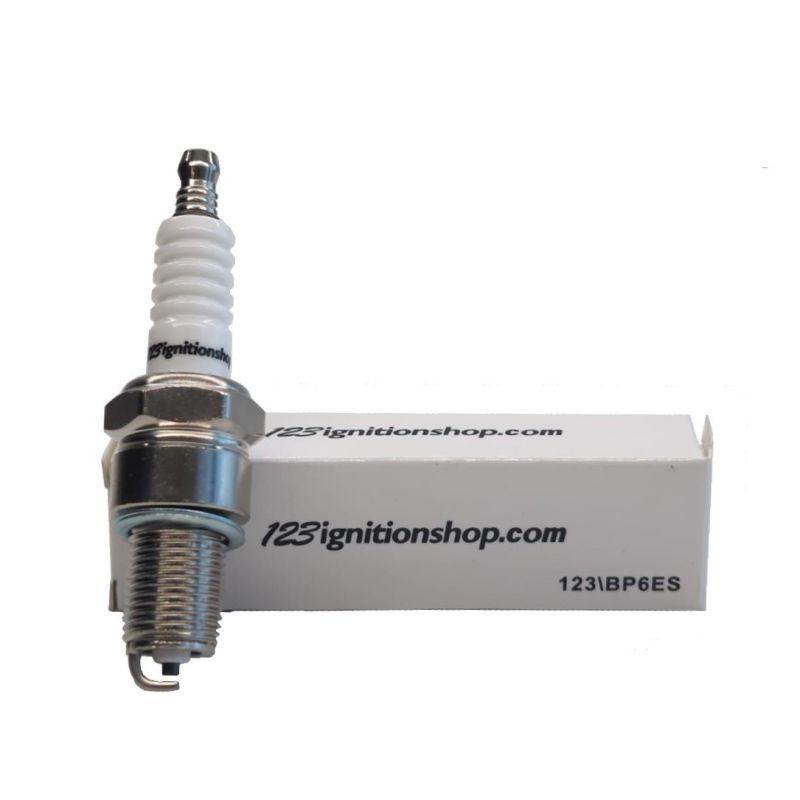

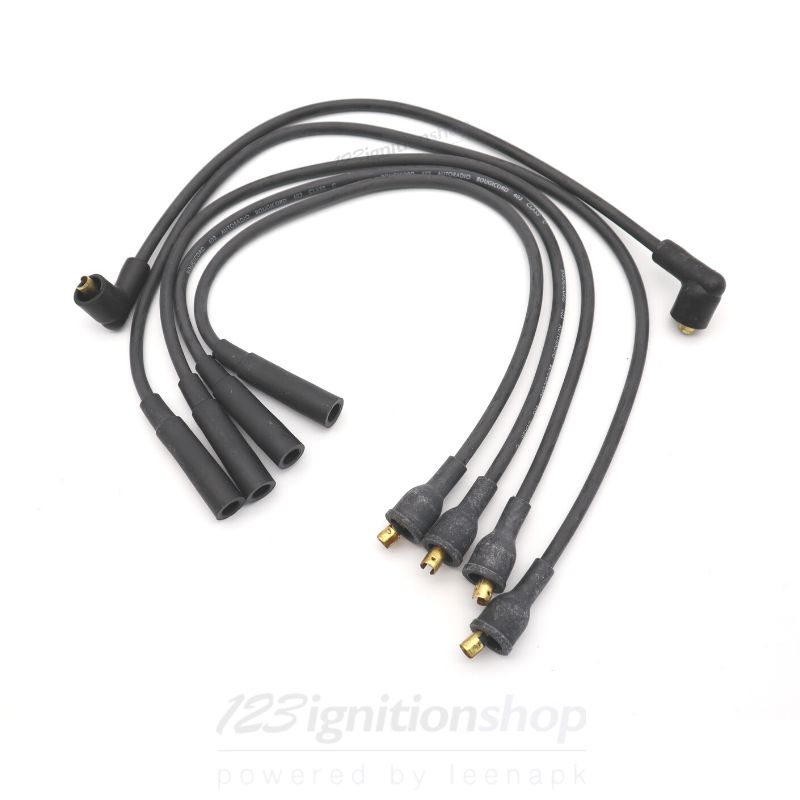

A set of 4 spark plugs and new spark plug cables have also been added.

Please note about the 123/BMW-4-R-V electronic ignition

Please check that the length of the above spark plug wires and the type of spark plugs match what you need for your car.

Please read the installation manual carefully. The manual contains further information on engine and distributor numbers, ignition timing and advance curves, as well as 123 ignition specifications. The installation procedure of the 123 ignition system to be followed is also described step by step.

4007

Data sheet

Cylinders
4
Direction of rotation
CW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft
Wiring
red +6V of +12V, black - coil
Grade
Miguel Angel González Delgado 2020-05-22

Bmw e21 320i M10

Un producto de alta calidad a un precio más que razonable, soluciona los problemas de los delcos antiguos si modificar la estética ni la esencia de los clásicos.
Y lo mejor de todos es el 123 Tune bluetooth, para nuestros clásicos modifcados ,excelente producto
