123/BMW-4-R-V complete system M10 02

123/BMW-4-R-V complete system M10 02

€529.00

Instead of €543.00

VAT included

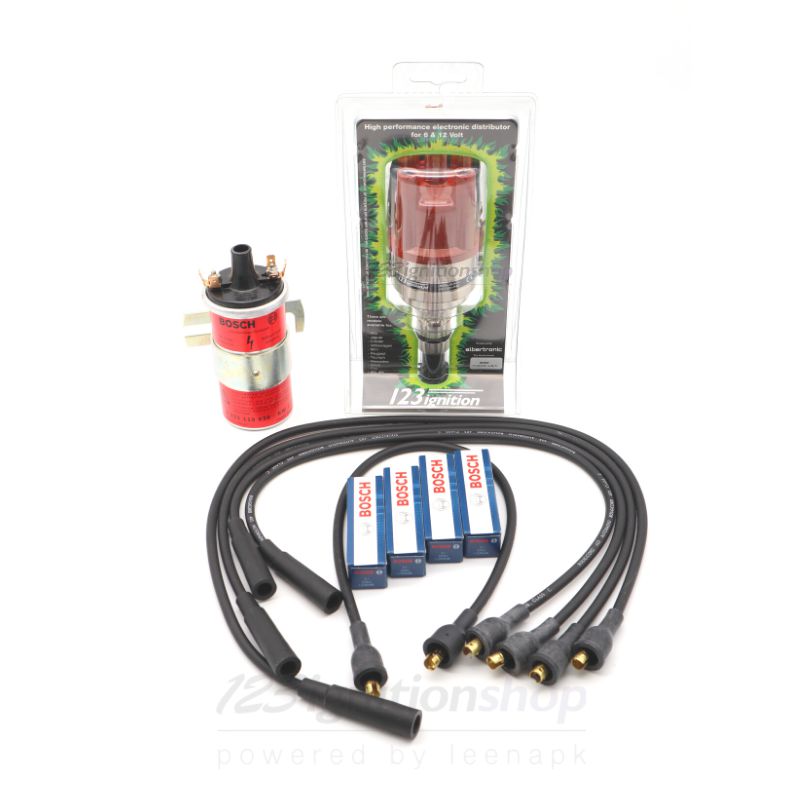

Now all parts in one order: a 123/BMW-4-R-V distributor + coil + set of 4 spark plugs + spark plug wires.

This pack contains

Quantity
Add to Compare
In stock

Complete electronic ignition set for a BMW.

Now all parts in one order: a 123/BMW-4-R-V distributor + ignition coil + set of 4 spark plugs + spark plug cables!

Contents of the set

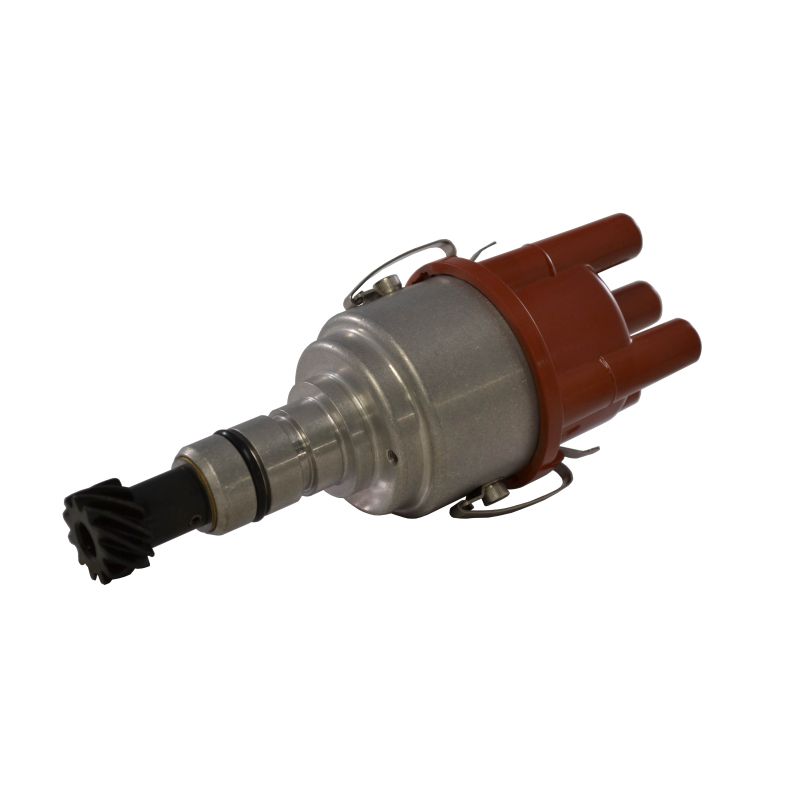

The 123/BMW-4-R-V is specially designed for 4 cylinder BMW engines WITH vacuum advance.

The cables suite:

  • 02 (E10) 1502 1.6 M 10 B 16 01.75 - 07.77
  • 02 (E10) 1600 Ti M 10 B 16 09.67 - 11.69
  • 02 (E10) 1600/2 M 10 B 16 12.67 - 12.71
  • 02 (E10) 1602 M 10 B 16 04.71 - 07.75
  • 02 (E10) 1802 M 10 B 18 05.71 - 07.75
  • 02 (E10) 2002 M 10 B 20 02.68 - 07.75
  • 02 (E10) 2002 Ti M 10 B 20 06.68 - 04.72
  • 02 (E10) 2002 Tii M 10 B 20 05.71 - 07.75
  • 02 Cabriolet (E10) 1600-2 M 10 B 16 12.67 - 10.71
  • 02 Cabriolet (E10) 2002 M 10 B 20 05.71 - 07.75
  • 02 Touring (E6) 1600 M 10 B 16 05.71 - 04.73
  • 02 Touring (E6) 1802 M 10 B 18 05.71 - 07.75
  • 02 Touring (E6) 2002 M 10 B 20 05.71 - 07.75
  • 02 Touring (E6) 2002 Tii M 10 B 20 01.71 - 07.75
  • 1500-2000 1500 M 10 B 15 10.62 - 07.66
  • 1500-2000 1500 1.6 M 10 B 16 09.63 - 07.66
  • 1500-2000 1600 M 10 B 16 04.64 - 04.68
  • 1500-2000 1800 M 10 B 18 08.63 - 09.69
  • 1500-2000 1800 M 10 B 184 07.69 - 09.71
  • 1500-2000 1800 Ti M 10 B 18 10.63 - 04.68
  • 1500-2000 2000 M 10 B 20 09.68 - 07.72
  • 1500-2000 2000 1.8 M 10 B 18 01.70 - 11.72
  • 1500-2000 2000 Ti / Tilux M 10 B 20 01.66 - 07.72
  • 1500-2000 2000 Ti M 10 B 20 12.69 - 07.72
  • 1600 GT Coupe 1.6 M 10 B 16 10.67 - 05.69
  • 2000-3.2 Coupe (E9) 2000 C/CA M 10 B 20 10.65 - 06.70
  • 2000-3.2 Coupe (E9) 2000 CS M 10 B 20 10.65 - 06.70

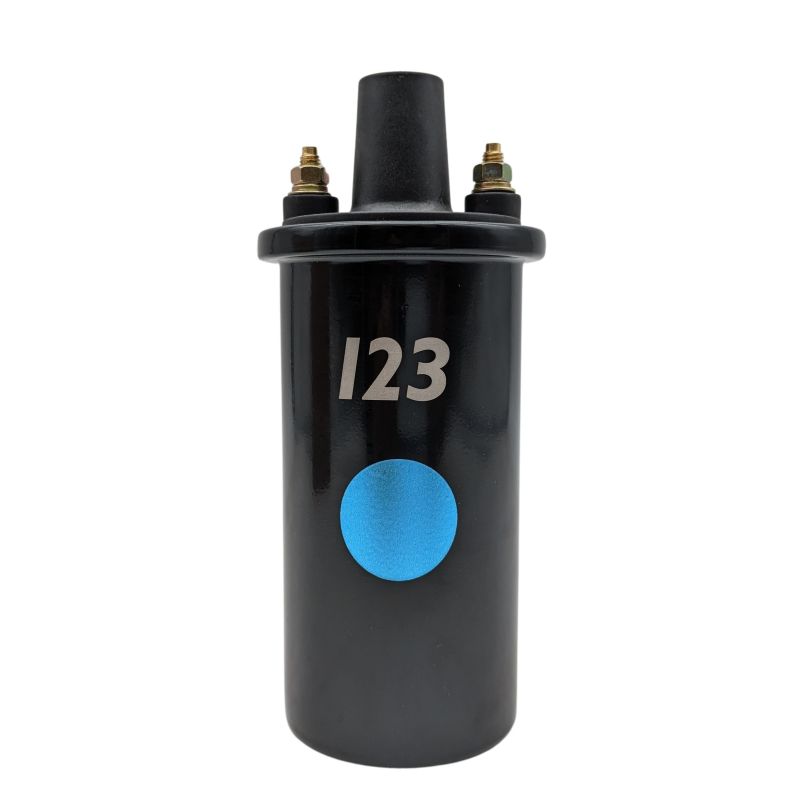

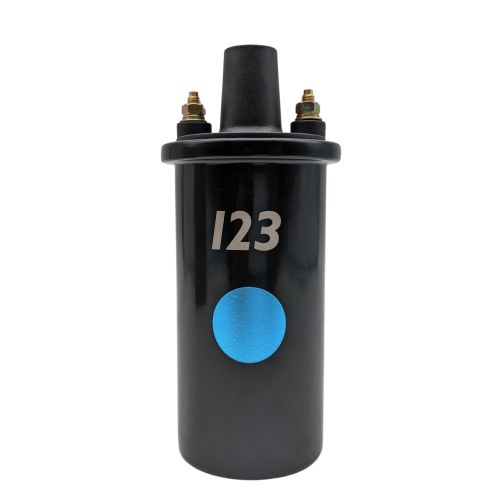

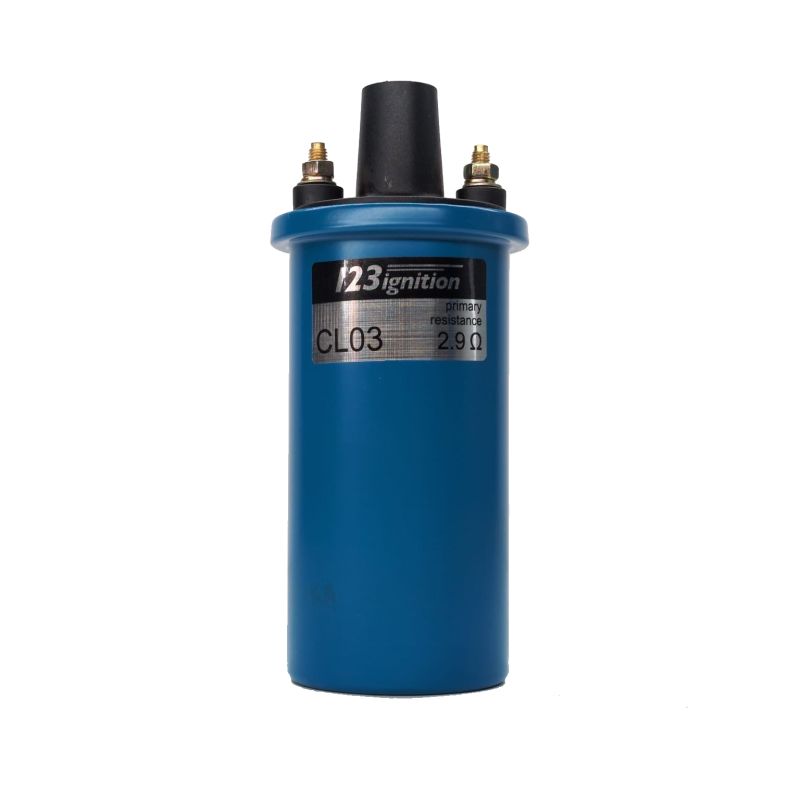

Because old ignition coils have often overheated, a 123 Red Coil is included in this set.

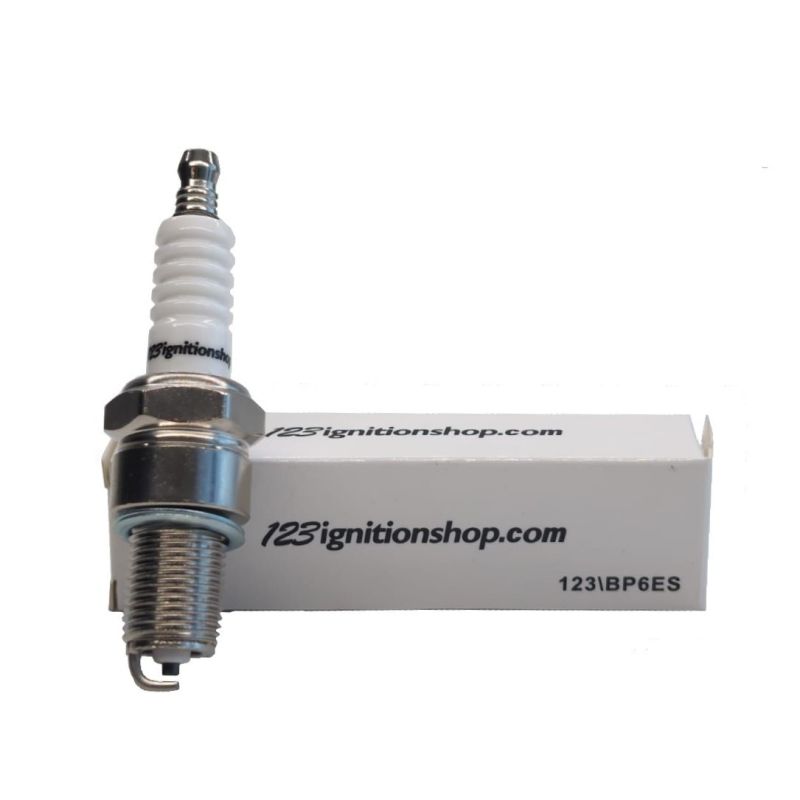

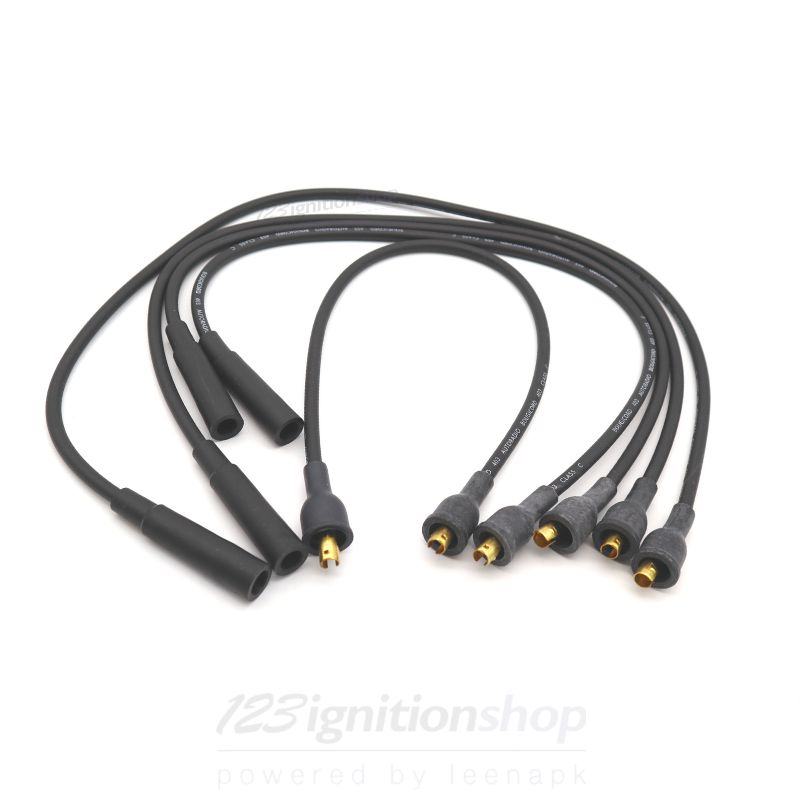

A set of 4 spark plugs and new spark plug cables have also been added.

Please note about the 123/BMW-4-R-V electronic ignition

Please check that the length of the above spark plug wires and the type of spark plugs match what you need for your car.

Please read the installation manual carefully. The manual contains further information on engine and distributor numbers, ignition timing and advance curves, as well as 123 ignition specifications. The installation procedure of the 123 ignition system to be followed is also described step by step.

4008

Data sheet

Cylinders
4
Direction of rotation
CW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft
Wiring
red +6V of +12V, black - coil
