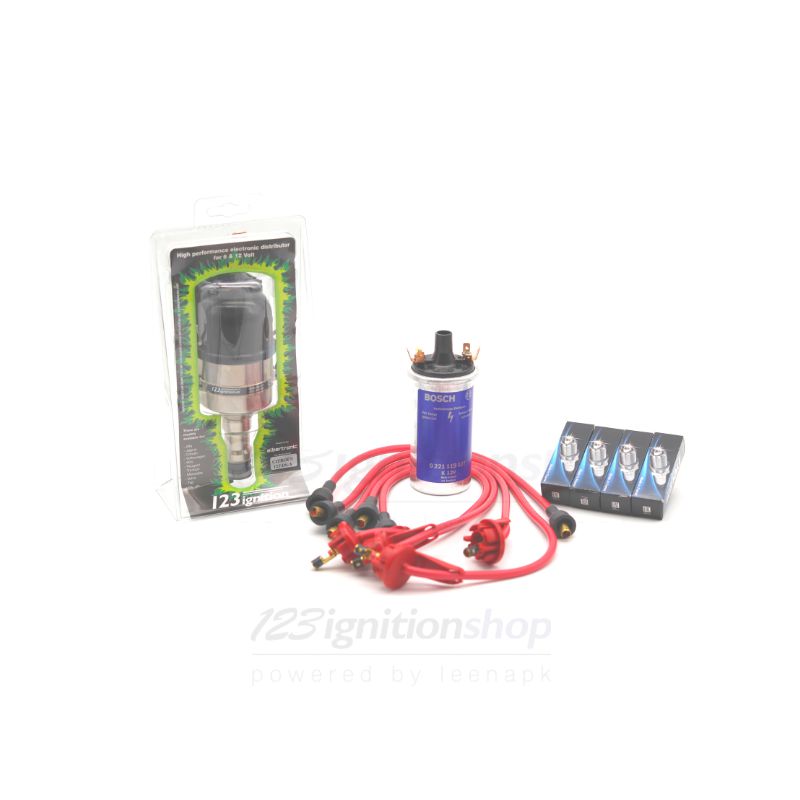

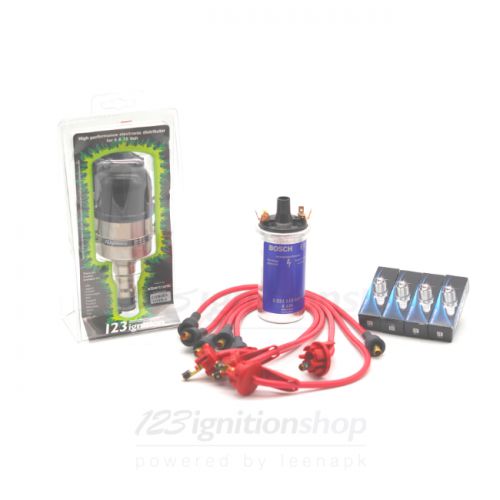

Now all in one order: a 123/DS-A distributor + coil + set of 4 spark plugs + spark plug wires.
123/DS-R complete system
Rating
€449.00
Instead of €463.00
VAT included
Now all in one order: a 123/DS-A distributor + coil + set of 4 spark plugs + spark plug wires.
Complete ignition system set for the Citroën ID/DS
Now all in one order: a 123/DS-A distributor + coil + set of 4 spark plugs + spark plug wires.
Content of the 123/DS-A 123ignition set

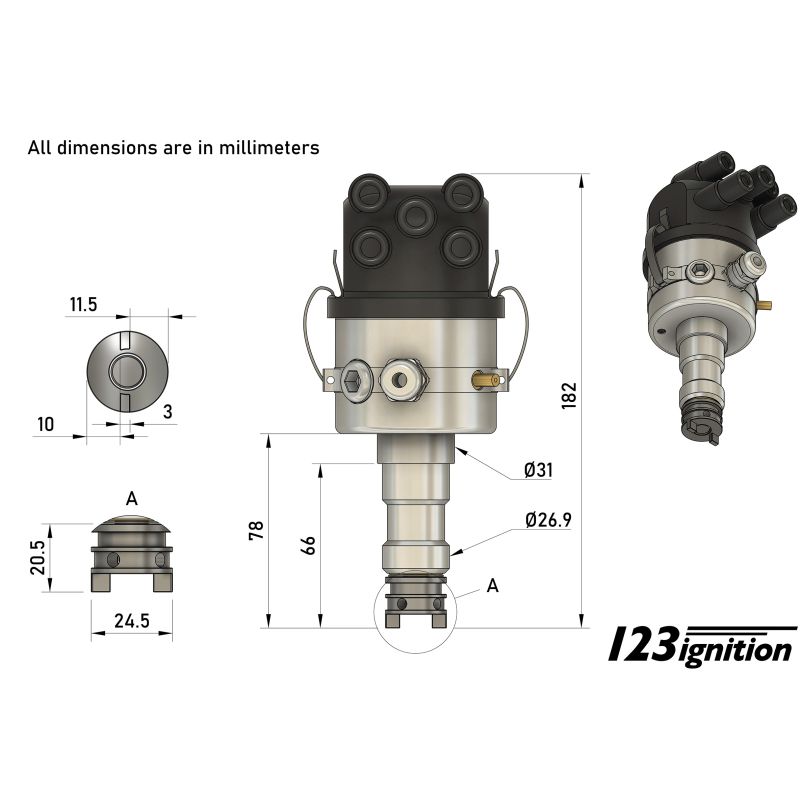

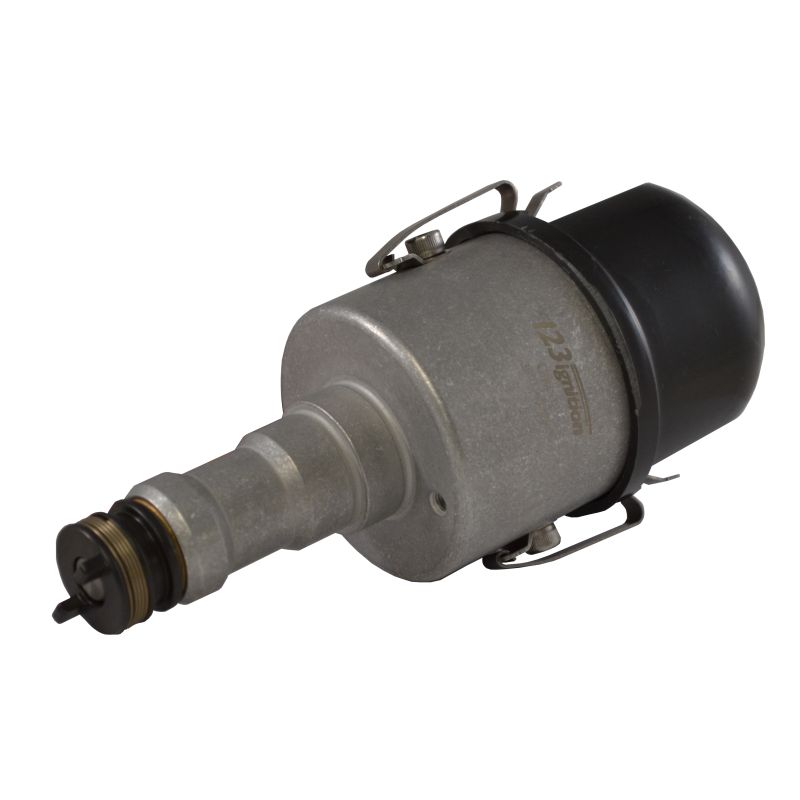

The 123/DS-A is a distributor, specifically intended for the Citroën ID/DS. It contains all the curves for carbureted ID/DS-engines as originally specified by Citroën, for cars manufactured after July 1959.

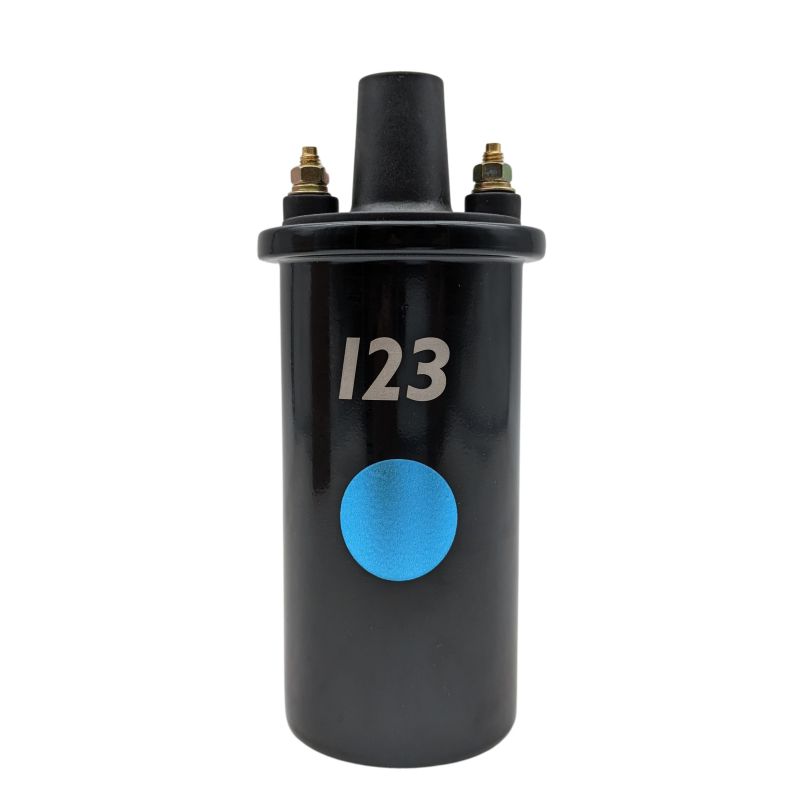

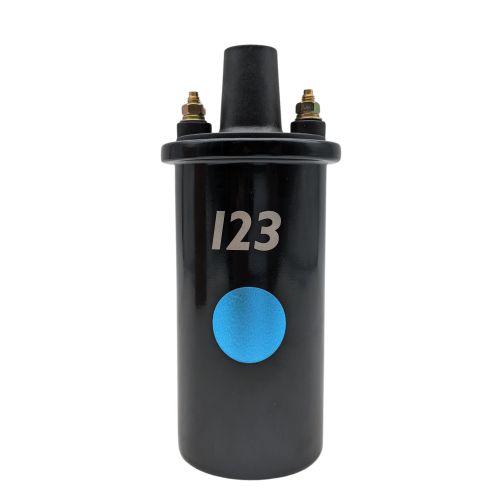

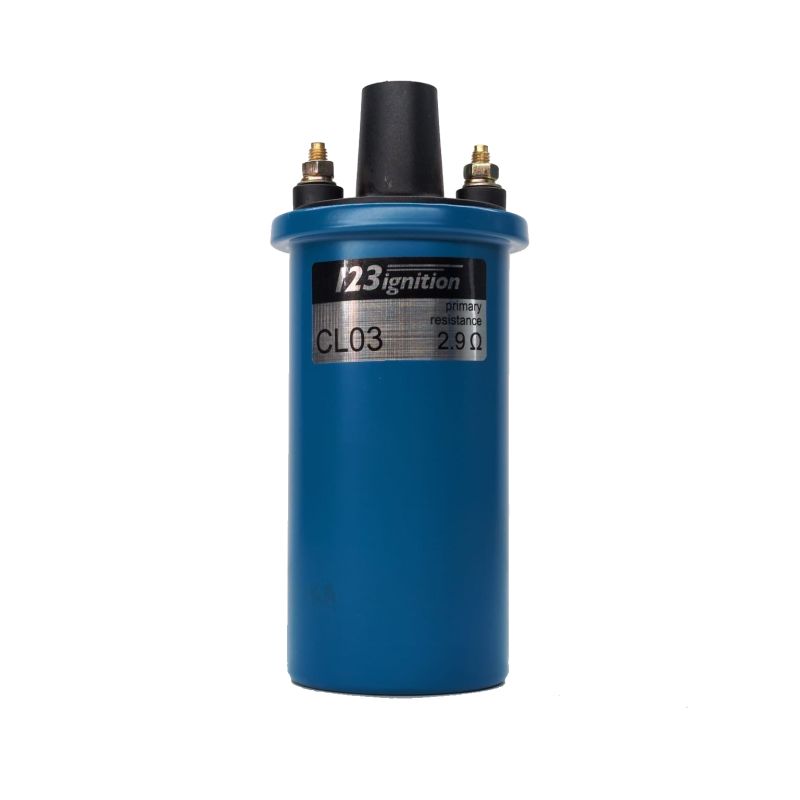

As used coils often were exposed to overheating in the past, the set contains a 123 Blue Coil.

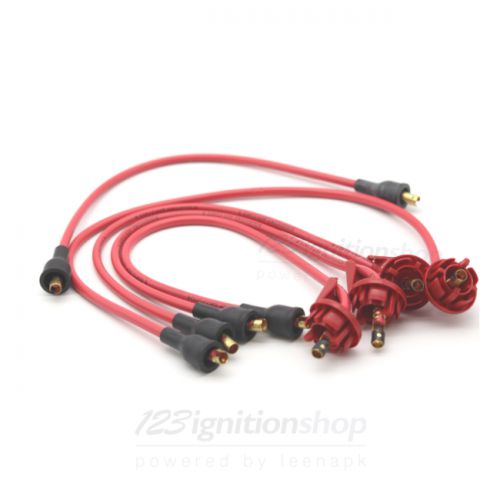

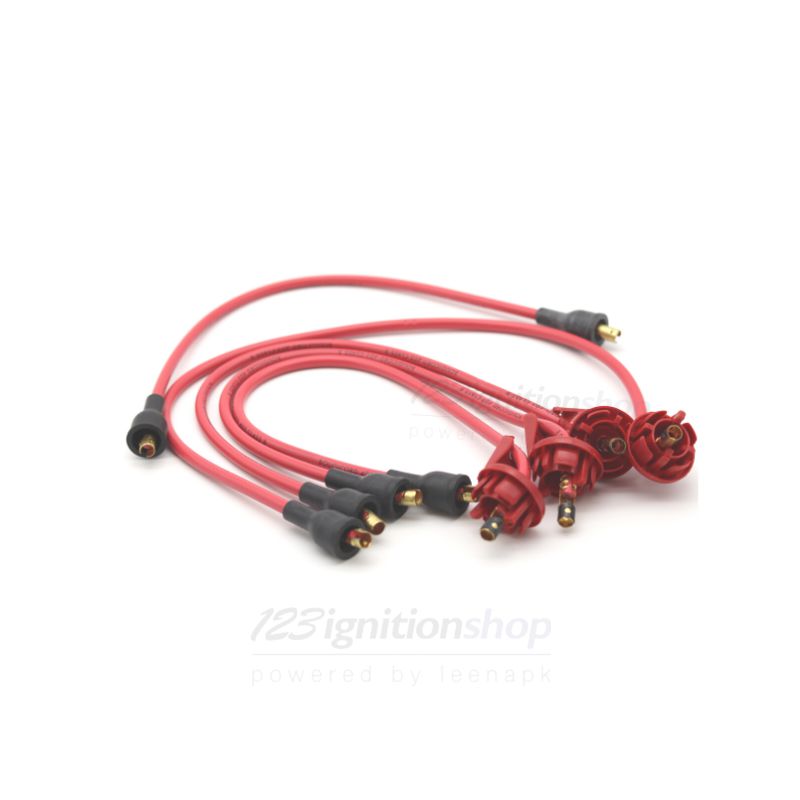

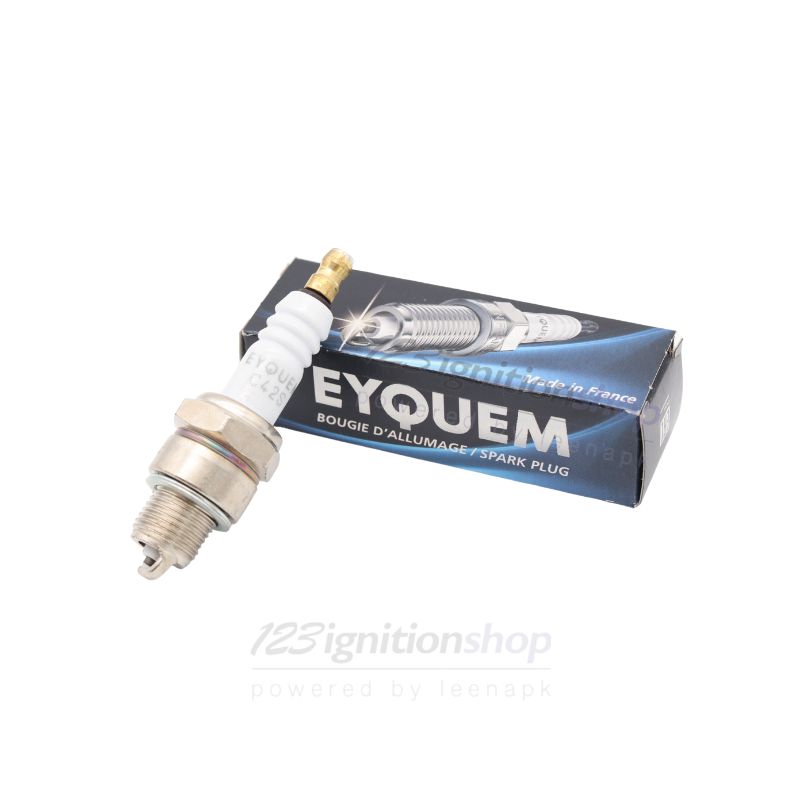

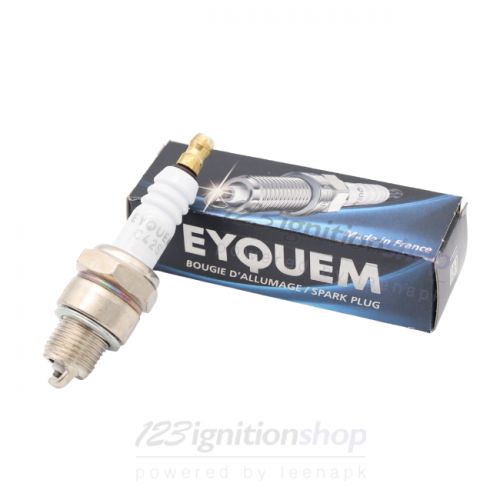

This set also offers 4 spark plugs and new spark plug wires.
Please note about the 123/DS-A set
Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.
3113
Data sheet
- Cylinders
- 4
- Direction of rotation
- CW/CCW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 8000 rpm
- Temperature
- -30 to 100 Celsius
- Coil
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- None
- Max. Advance
- 45 degr. crankshaft

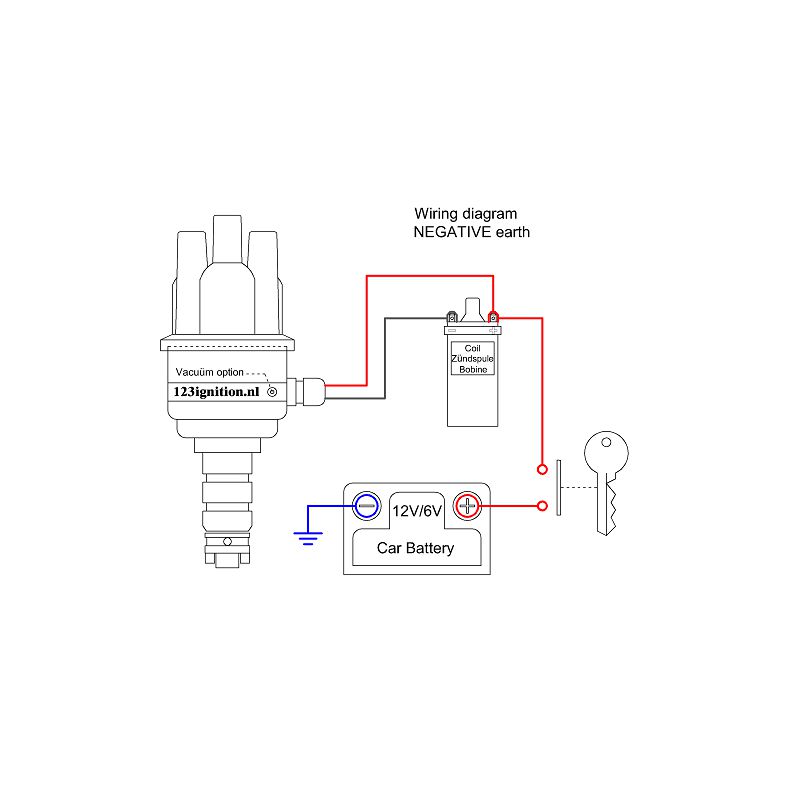

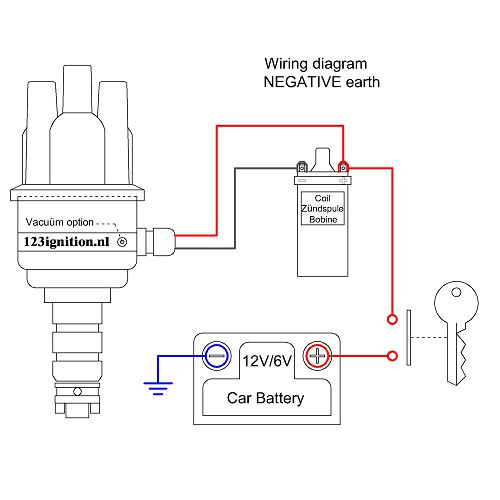

- Wiring
- red +6V of +12V, black - coil
Niet evident
Geinstalleerd in een DS 21 (DX motor). Curve 9 gebruikt, maar dan was het nog een gedoe om de juiste positie te vinden. Wat meer correcte info in de gebruiksaanwijzing zou misschien helpen. Uiteindelijk werkt het wel prima, de oude delco was niet meer juist te regelen. PS: de bougies van Equiem niet gebruikt, teveel slechte ervaring mee.
