Now all in one order: a 123/DS-A-V distributor + coil + set of 4 spark plugs + spark plug wires.
123/DS-A-V complete system
€499.00
Instead of €503.00
VAT included
Now all in one order: a 123/DS-A-V distributor + coil + set of 4 spark plugs + spark plug wires.

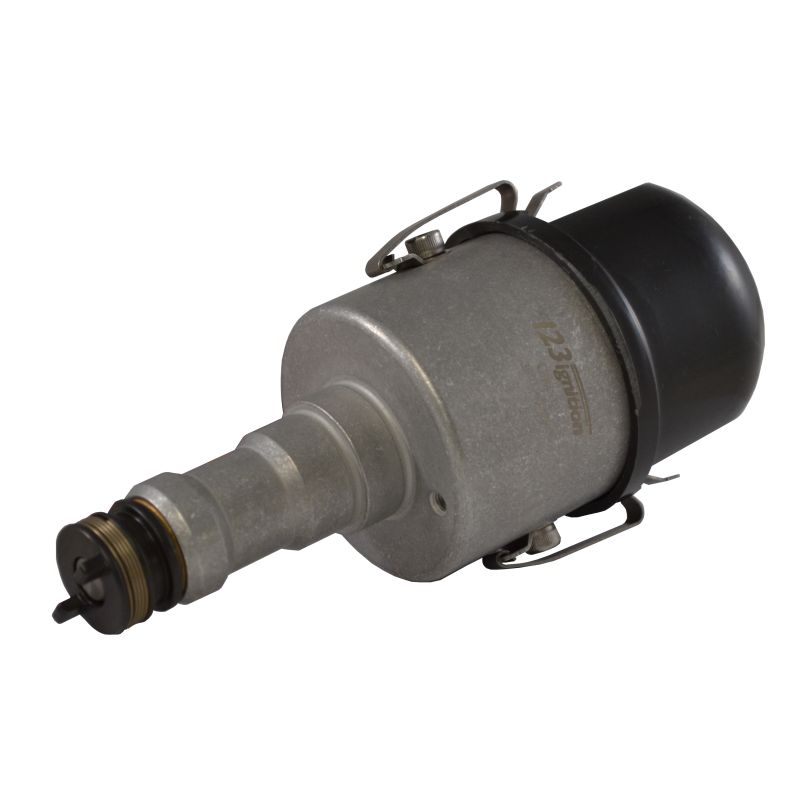

Complete 123ignition system set for the Citroën ID/DS with vacuum advance
Now all in one order: a 123/DS-A-V distributor + coil + set of 4 spark plugs + spark plug wires.

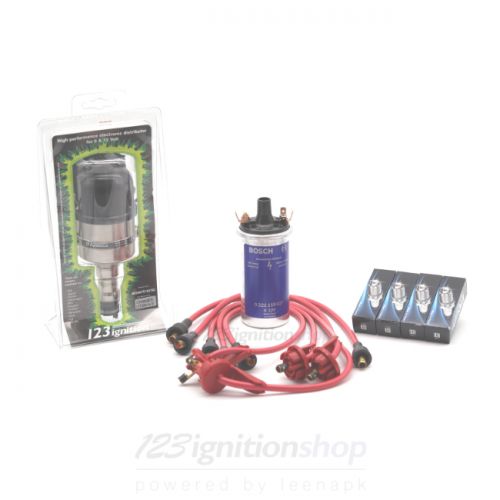

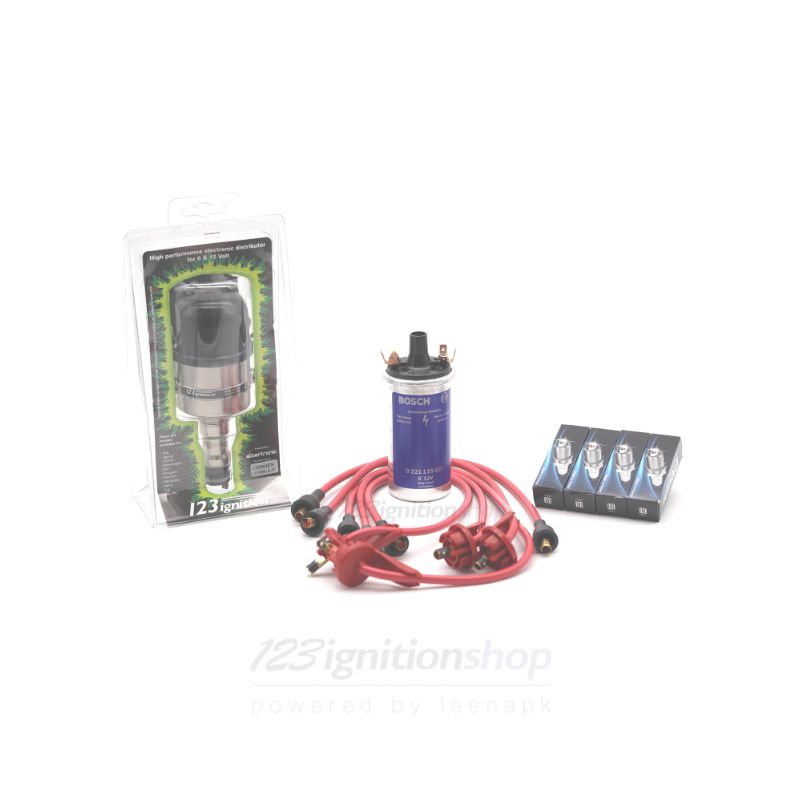

Content of the 123/DS-A-V 123ignition set
The 123/DS-A-V is a distributor, specifically intended for the Citroen ID/DS with vacuum advance. It contains all the curves for carbureted ID/DS-engines as originally specified by Citroën, for cars manufactured after July 1959.
As used coils often were exposed to overheating in the past, the set contains a 123 Blue Coil.

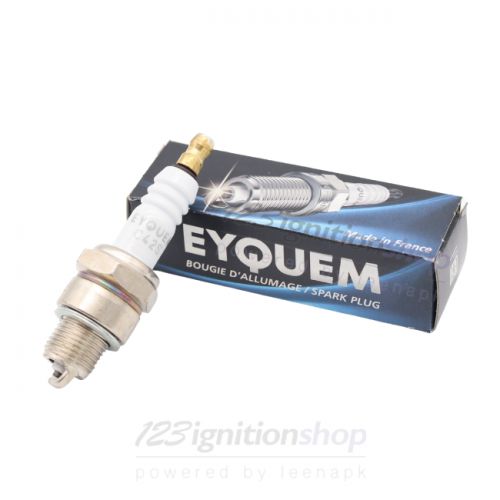

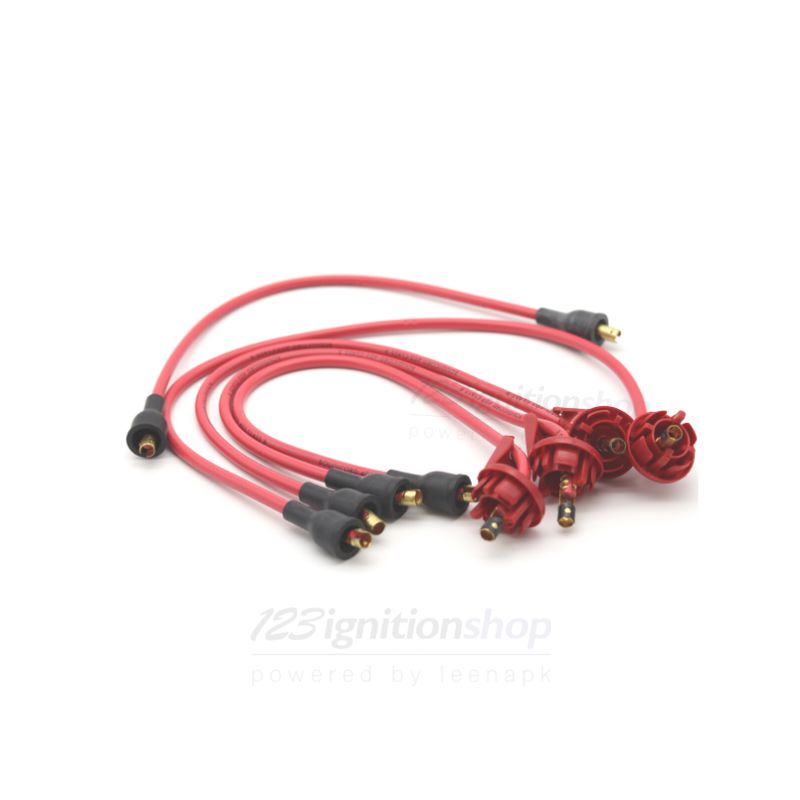

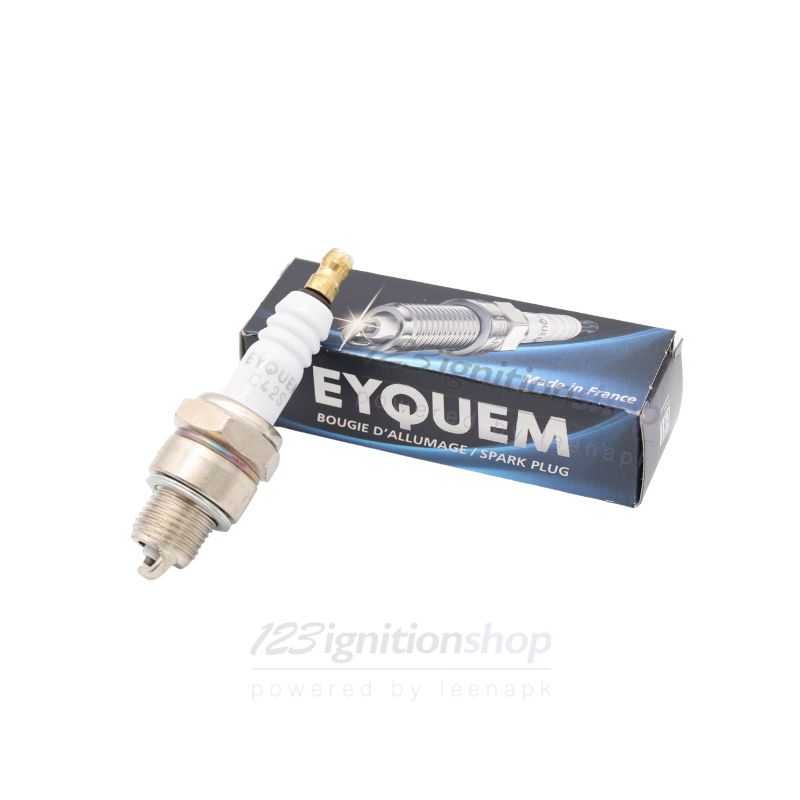

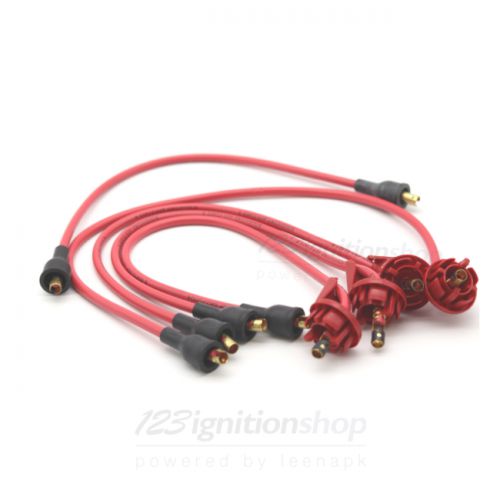

This set also offers 4 spark plugs and new spark plug wires.
Please note about the 123/DS-A-V set
Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.
3113
Data sheet
- Cylinders
- 4
- Direction of rotation
- CW/CCW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 8000 rpm
- Temperature
- -30 to 100 Celsius
- Coil
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- With vacuum, also works without when not connected.
- Max. Advance
- 45 degr. crankshaft

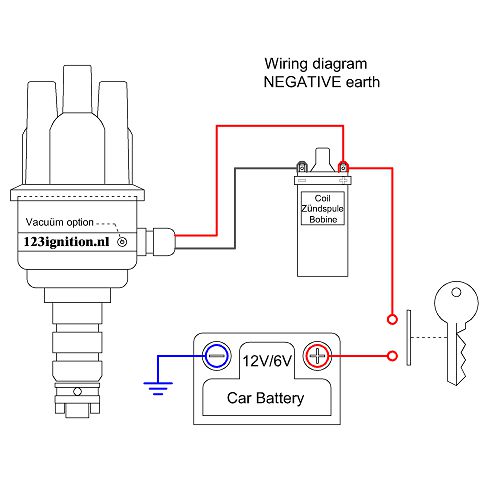

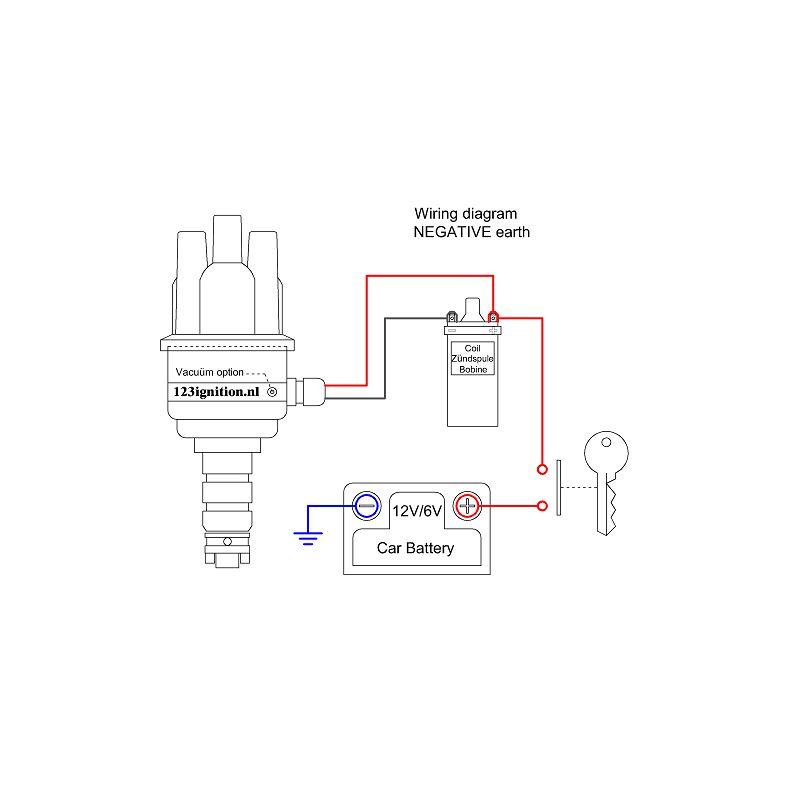

- Wiring
- red +6V of +12V, black - coil
