123/DS-R-V complete system

123/DS-R-V complete system

€485.00

Instead of €503.00

VAT included

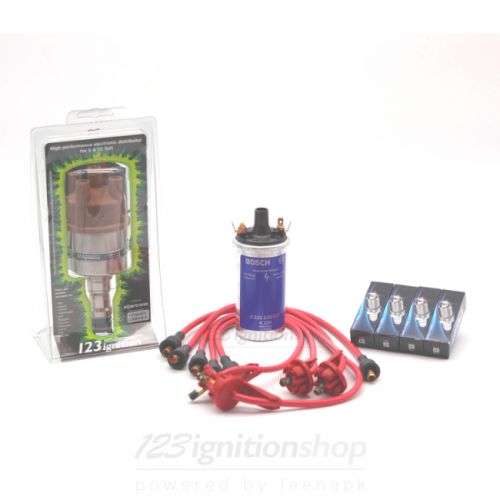

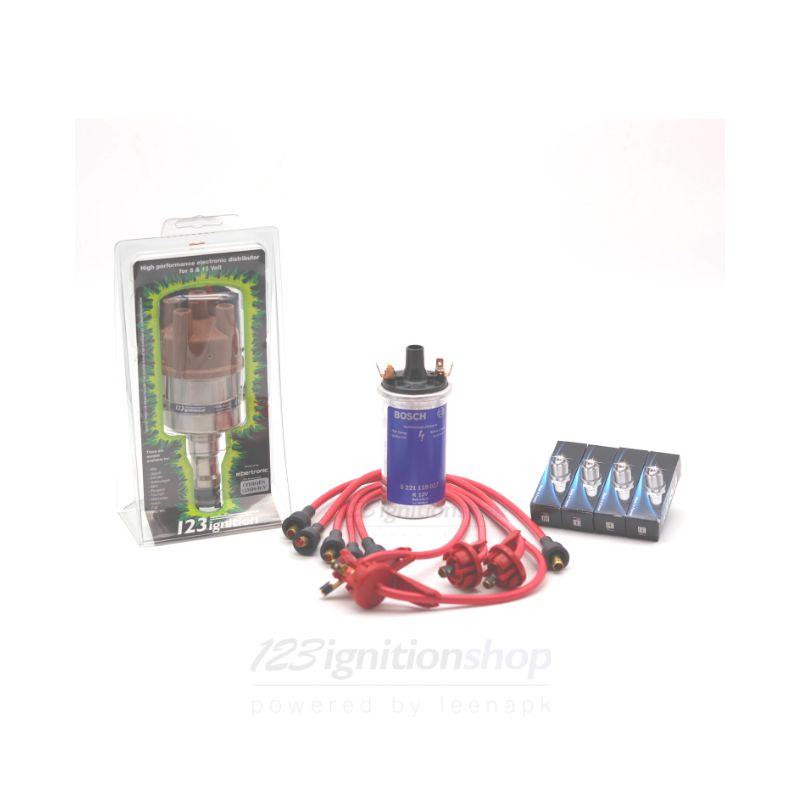

Now all in one order: a 123/DS-R-V distributor + coil + set of 4 spark plugs + spark plug wires.

This pack contains

Quantity
Add to Compare
In stock

Now all in one order: a 123/DS-R-V distributor + coil + set of 4 spark plugs + spark plug wires.

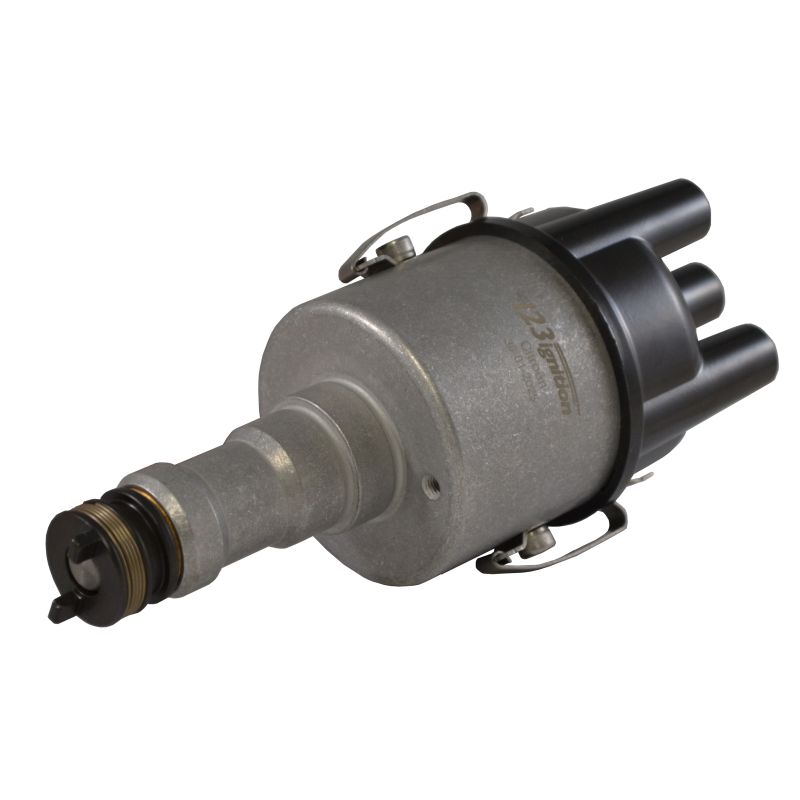

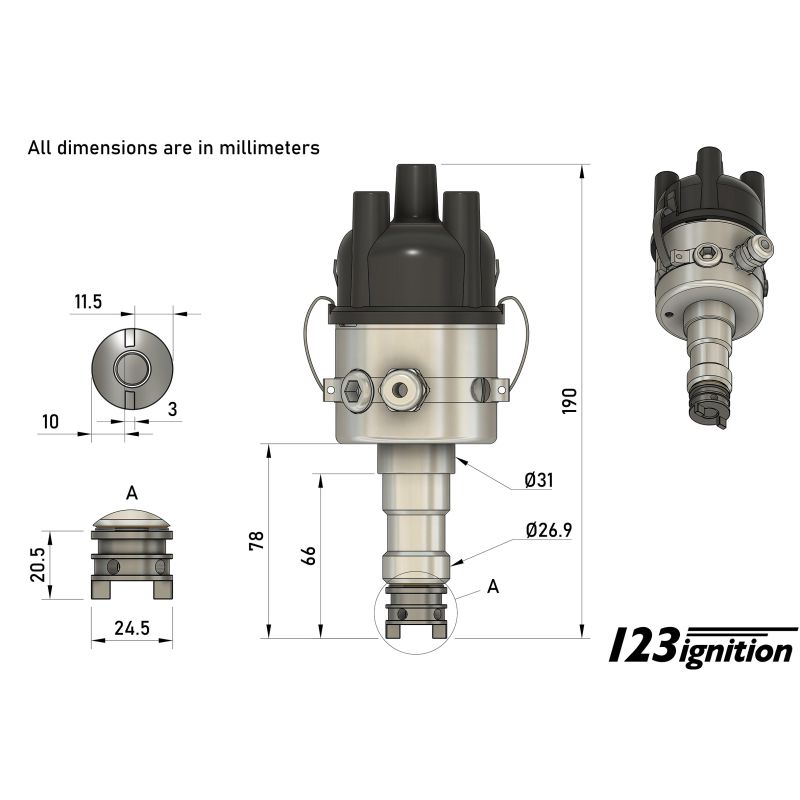

The 123/DS-R-V is a distributor, specifically intended for the Citroën ID / DS with vacuum advance. It contains all the curves for carbureted ID/DS-engines as originally specified by Citroën, for cars manufactured after July 1959.

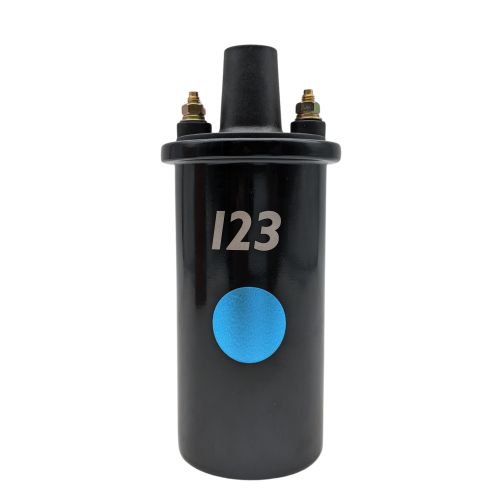

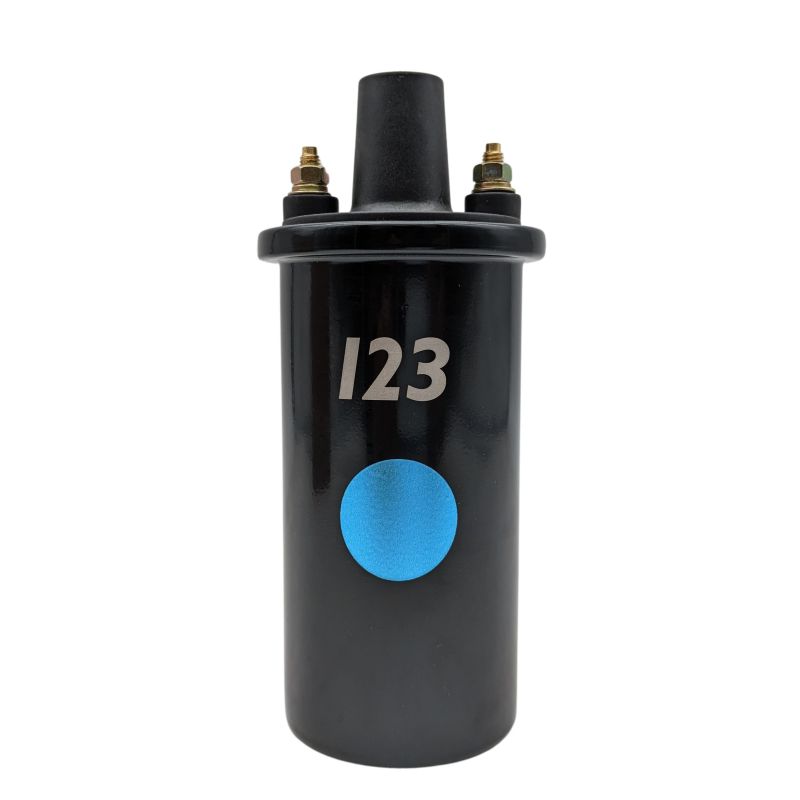

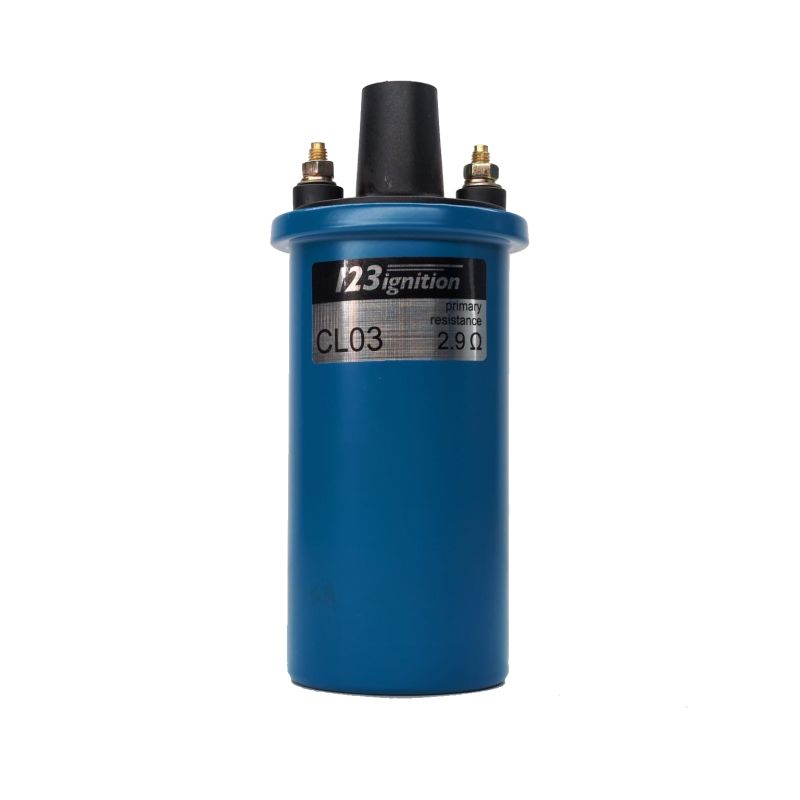

As used coils often were exposed to overheating in the past, the set contains a 123 Blue Coil.

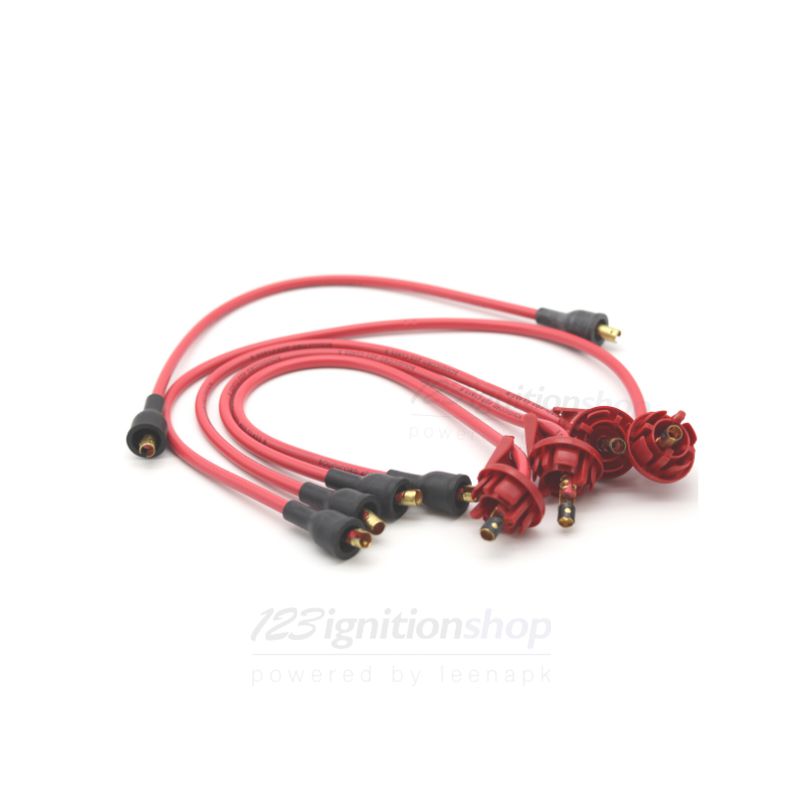

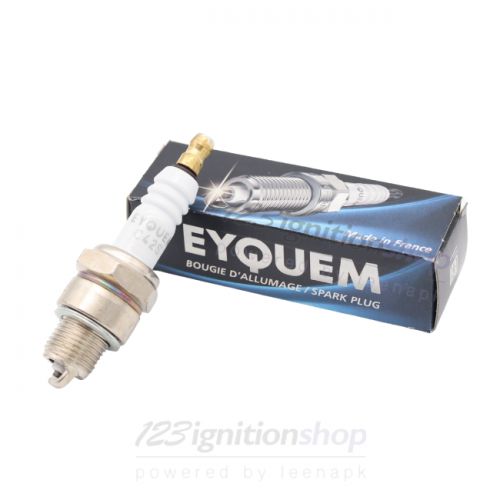

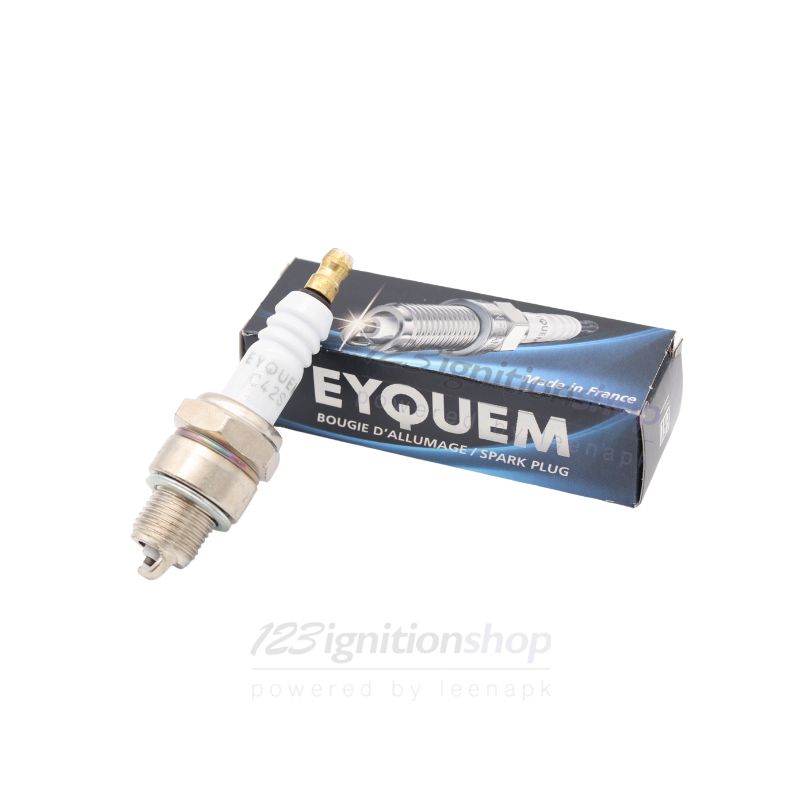

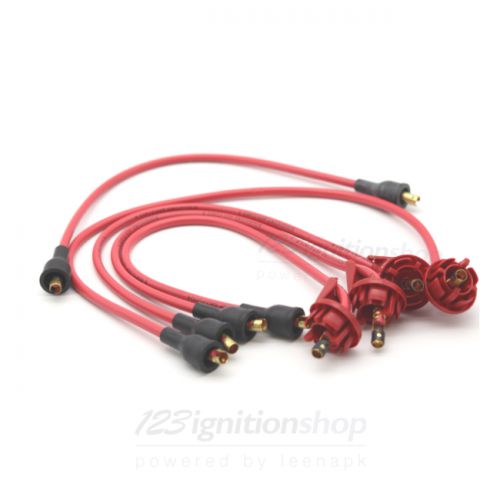

This set also offers 4 spark plugs and new spark plug wires.

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

3113

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft

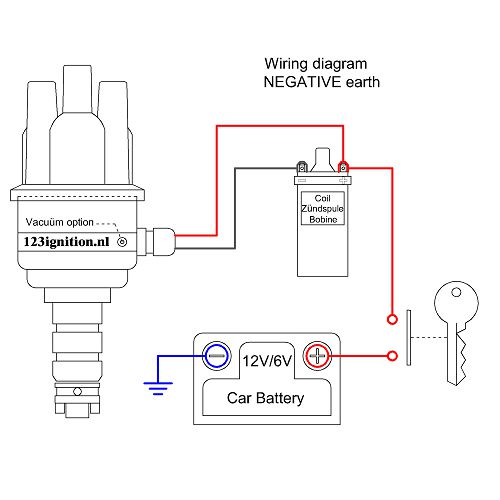

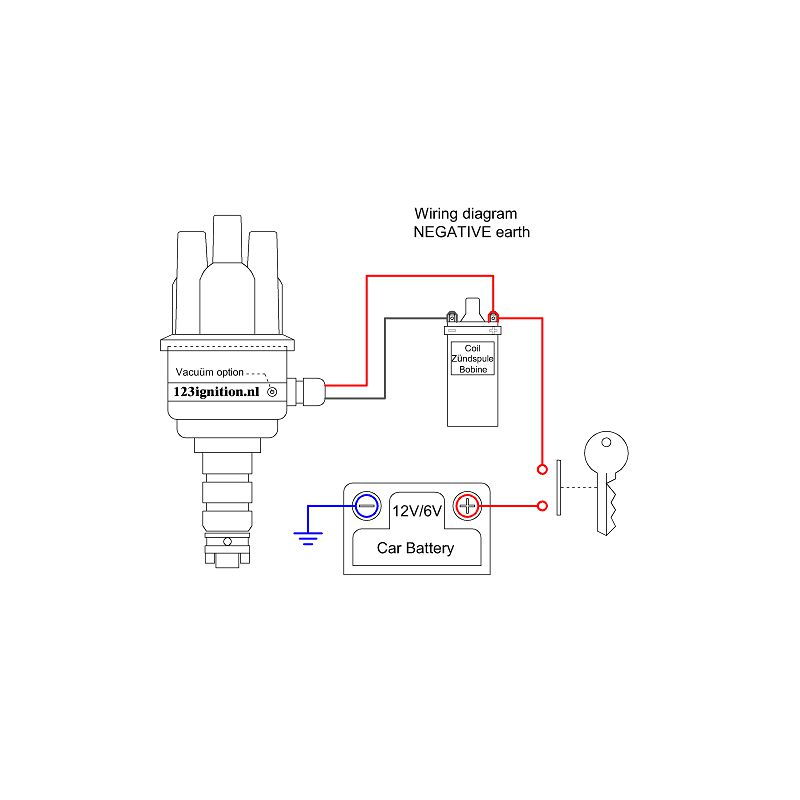

Wiring
red +6V of +12V, black - coil
Grade
Grane Maaløe DK 2020-01-21

Failure in install manual

Wonder WHO step Four and five in the manual has the same text.....
