123/FIAT-TC-4-A-V complete system for Fiat 131

123/FIAT-TC-4-A-V complete system for Fiat 131

€529.00

Instead of €563.00

VAT included

Now all parts in one order: a 123/ FIAT-TC-4-A-V distributor + ignition coil + set of 4 spark plugs + spark plug cables!

This pack contains

Quantity
Add to Compare
In stock

Complete electronic ignition set for a Fiat 131.

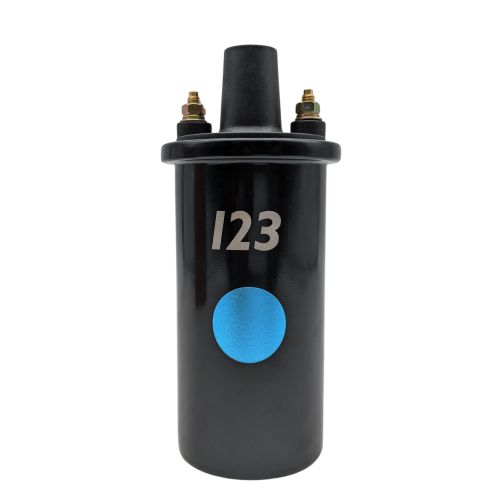

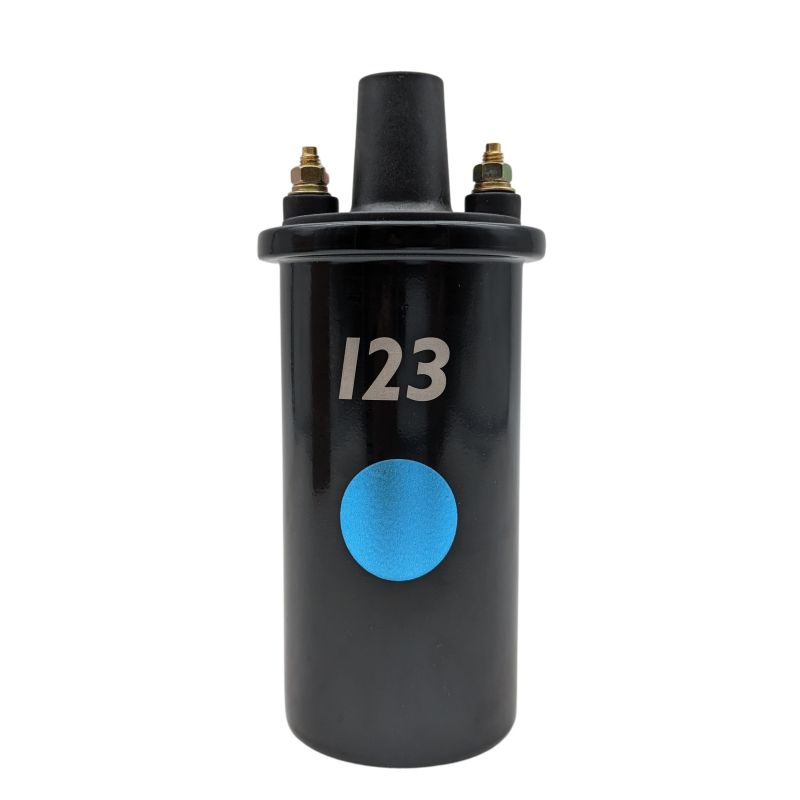

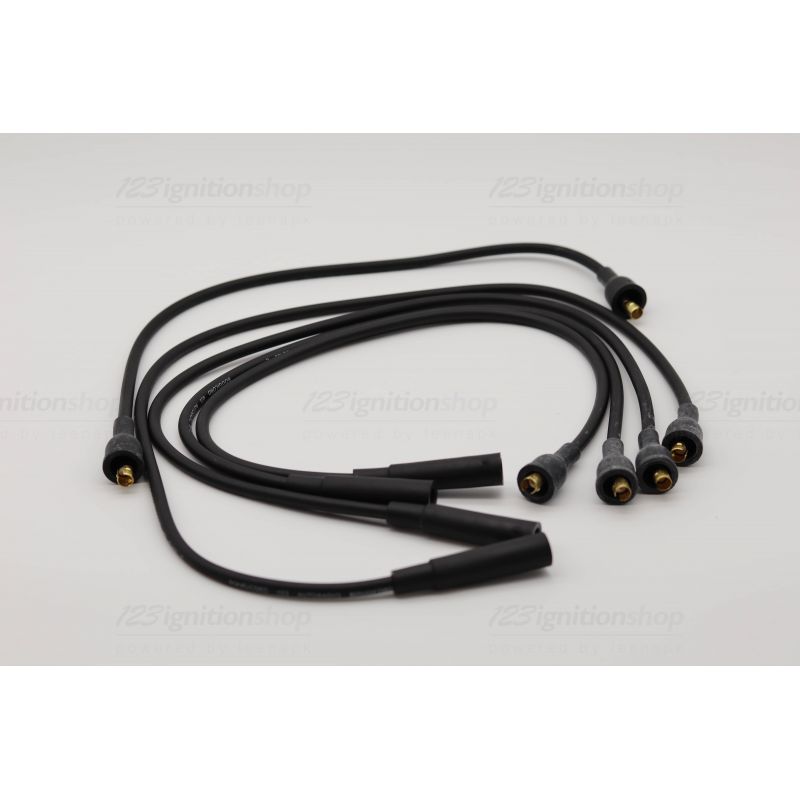

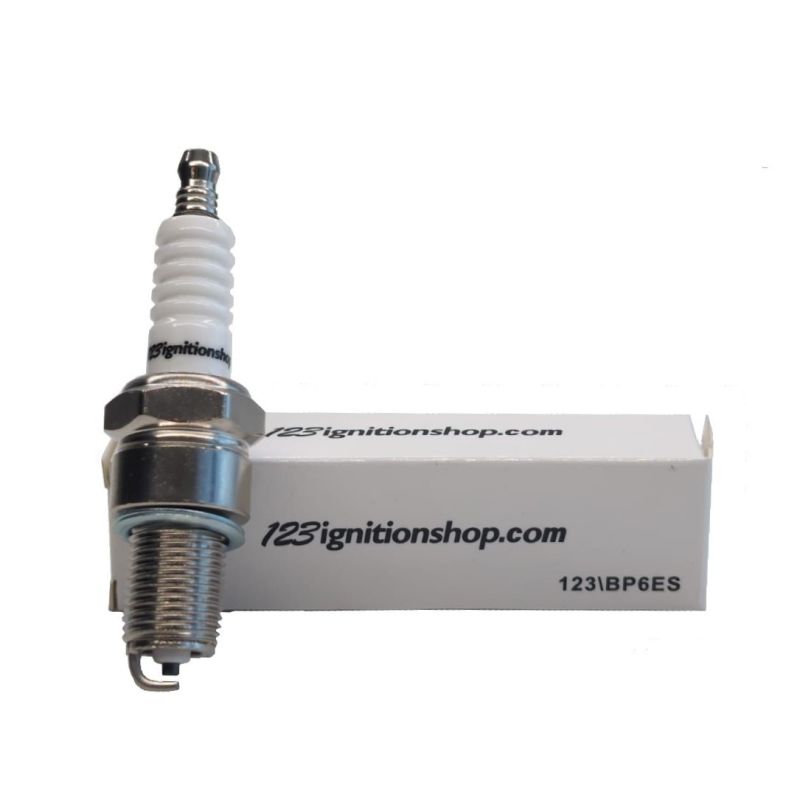

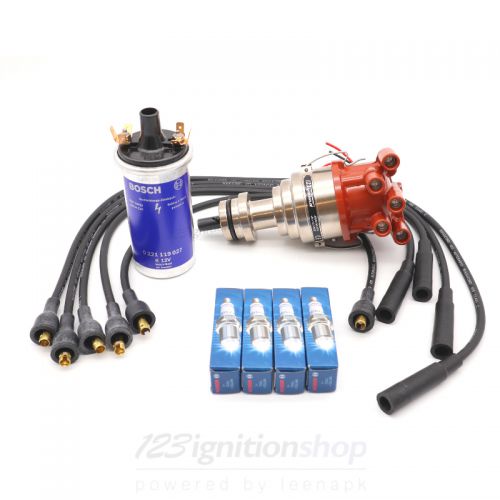

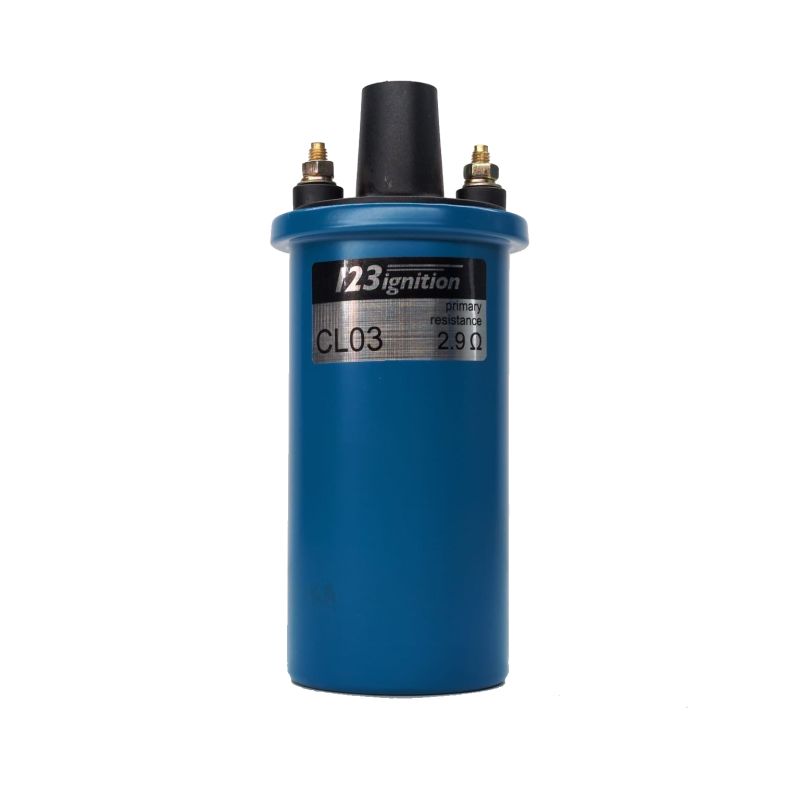

Now all parts in one order: a 123/FIAT-TC-4-A-V distributor + 123 Blue Coil + set of 4 spark plugs + spark plug cables!

Contents of the set

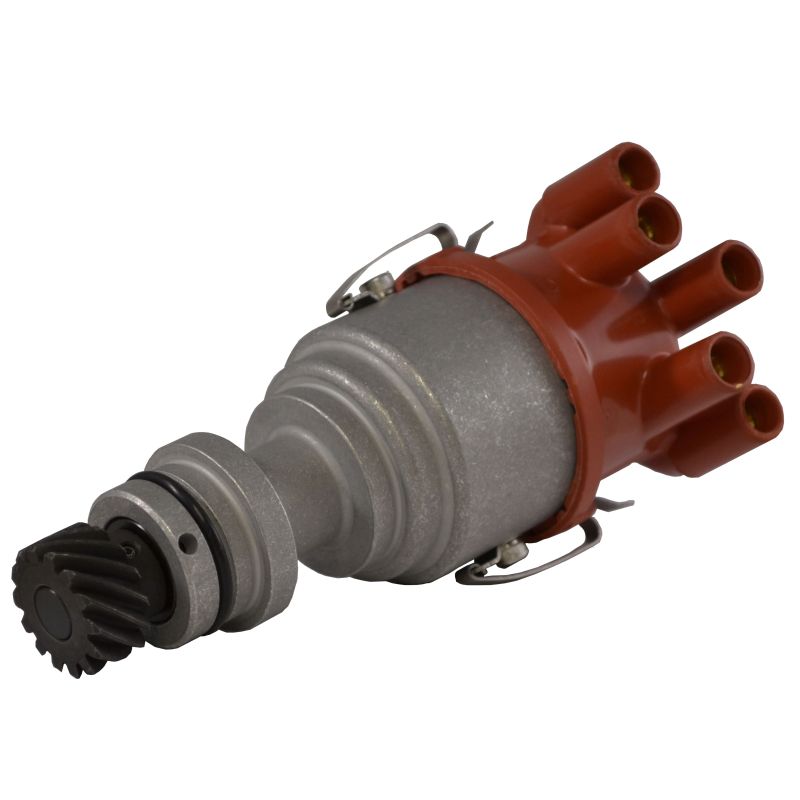

The 123/FIAT-TC-4-A-V is specially designed for 4 cylinder Fiat 131 engines WITH vacuum advance.

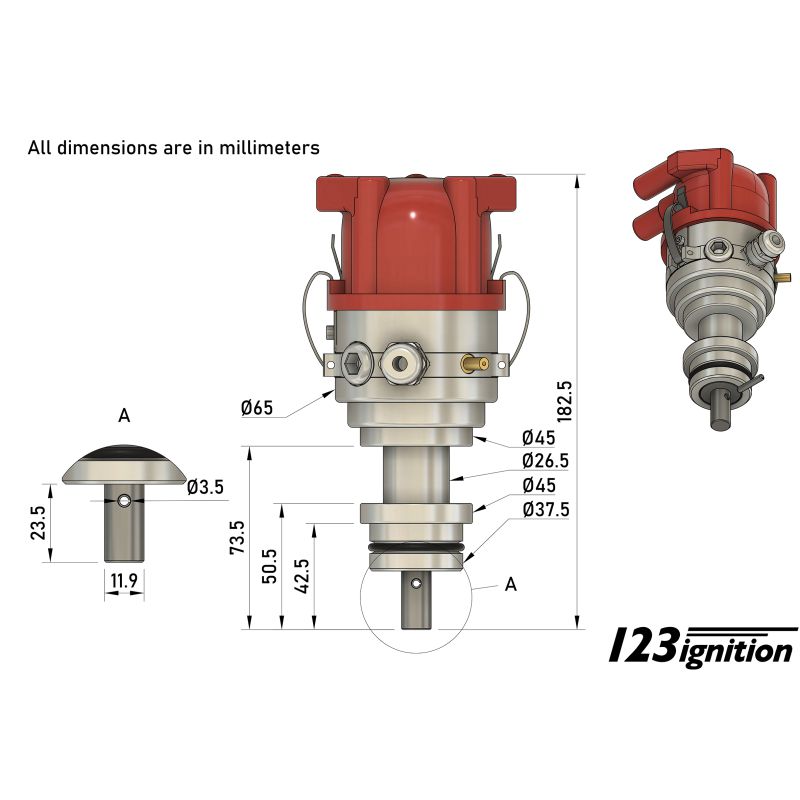

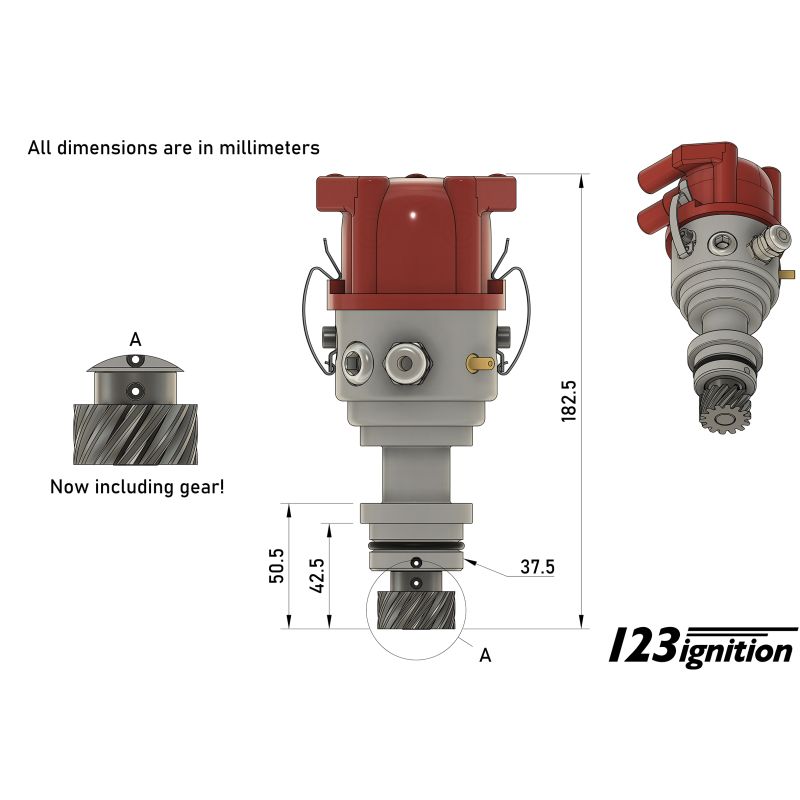

This set is suitable for (we recommend checking the dimensions):

Fiat

  • 131 1.3 Mirafiori 10.74 - 12.82
  • 131 1.3 Super Mirafiori 131 B.000 03.78 - 12.80
  • 131 1.4 Mirafiori 131 C.000/131 C1.000 11.80 - 01.84
  • 131 1.4 Super Mirafiori 131 C1.000 04.81 - 12.83
  • 131 1.6 131 A1.000 10.74 - 09.81
  • 131 1.6 131 C2.000 11.76 - 12.84
  • 131 1.6 Super 131 C3.000 03.78 - 01.84
  • 131 1.6 Super Mirafiori 131 B1.000 03.79 - 03.82
  • 131 2.0 Abarth Rally 131 B2.000 01.76 - 07.80
  • 131 2.0 Racing 131 B2.000 06.78 - 12.81
  • 131 2.0 Super 131 C4.000 01.81 - 12.84
  • 131 Familiare/Panorama 1.3 Mirafiori 03.75 - 03.82
  • 131 Familiare/Panorama 1.3 Mirafiori 131 A6.000 03.75 - 12.78
  • 131 Familiare/Panorama 1.4 Mirafiori 131 C.000/131 C1.000 11.81 - 01.84
  • 131 Familiare/Panorama 1.6 131 C2.000 11.80 - 04.85
  • 131 Familiare/Panorama 1.6 CL 131 A1.000 03.75 - 12.78
  • 131 Familiare/Panorama 1.6 Super 131 C3.000 12.79 - 12.81
  • 131 Familiare/Panorama 2.0 Super 131 C4.000 01.81 - 12.84
  • 132 1.6 05.77 - 09.82
  • 132 1.6 132 BB OA O 04.72 - 01.76
  • 132 1.6 132 C.000 01.76 - 12.82
  • 132 1.6 132 C6.000 03.77 - 12.81
  • 132 2.0 132 C2.000 05.77 - 06.81
  • 132 2.0 GLS 132 C2.000 01.76 - 12.76
  • 132 2.0 i.e. 132 C3.000 01.80 - 12.82
  • 900 T/E Pulmino 0.9 100 GF 000 01.78 - 01.86
  • ARGENTA (132A) 1600 132 D.000 04.81 - 12.85
  • ARGENTA (132A) 1600 i.e 04.81 - 12.85
  • ARGENTA (132A) 2000 132 C2.000/132 D1.000 06.78 - 12.85
  • ARGENTA (132A) 2000 i.e. 132 C3.000 06.81 - 07.86
  • REGATA (138) 85 Super 1.5 138 B3.000 09.83 - 04.85
  • REGATA (138) 100 Super 1.6 149 A2.000/149 A4.000 10.83 - 12.90
  • REGATA (138) 100 Super 1.6 149 C3.000 10.83 - 07.89
  • REGATA Weekend 100 1.6 149 A4.000 09.84 - 12.86
  • REGATA Weekend 100 i.e. 1.6 149 C3.000 01.87 - 12.90
  • RITMO I (138A) 105 Sport 1.6 138 AR.000 05.81 - 12.82
  • RITMO I (138A) 125 TC Abarth 2.0 138 AR1.000 11.81 - 09.82
  • RITMO II (138A) 105 1.6 138 AR.000 01.83 - 12.87
  • RITMO II (138A) 125 TC Abarth 2.0 138 AR1.000 12.82 - 12.87
  • RITMO II (138A) 130 TC Abarth 2.0 138 AR2.000 04.83 - 12.87
4008

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft
Wiring
red +6V of +12V, black - coil
