123/FIAT-TC-4-A-V complete system for Fiat 124
€539.00
Instead of €582.00
VAT included

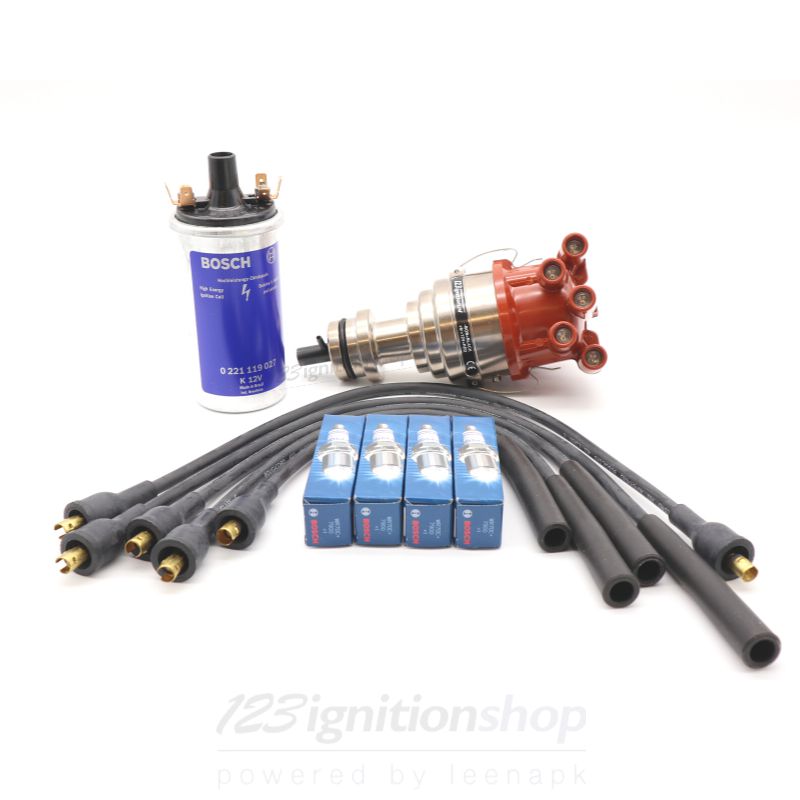

Now all parts in one order: a 123/ FIAT-TC-4-A-V distributor + ignition coil + set of 4 spark plugs + spark plug cables!
Complete electronic ignition set for a Fiat 124.

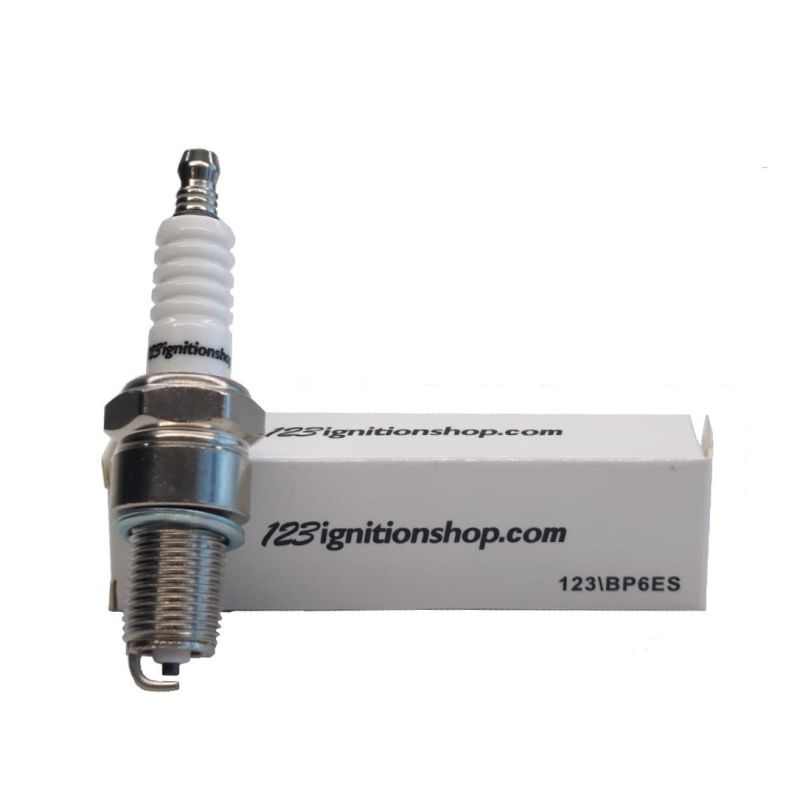

Now all parts in one order: a 123/FIAT-TC-4-A-V distributor + 123 Blue Coil + set of 4 spark plugs + spark plug cables!
Contents of the set

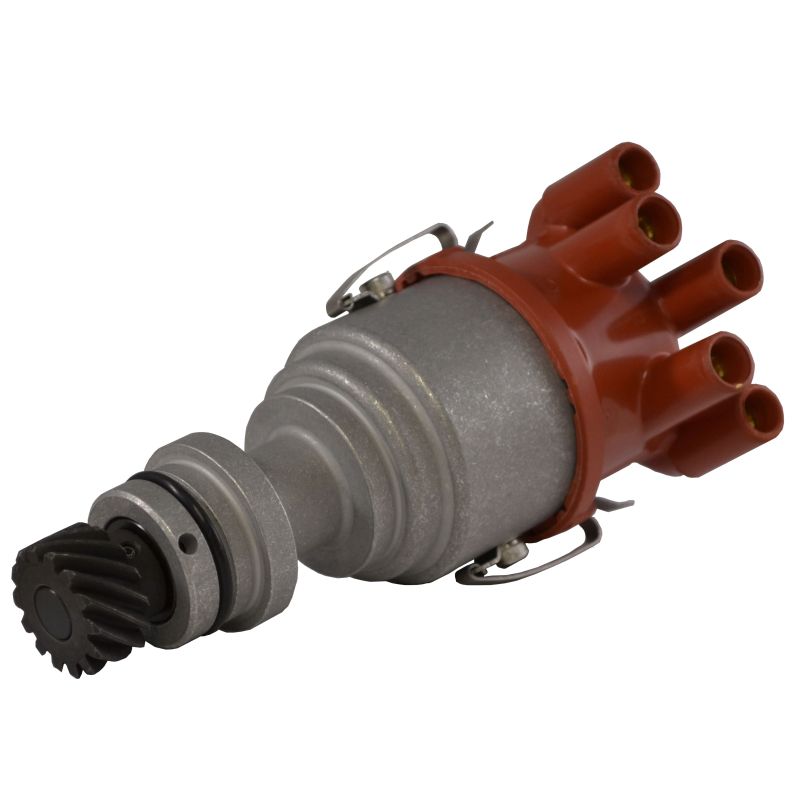

The 123/FIAT-TC-4-A-V is specially designed for 4 cylinder Fiat 124 engines WITH vacuum advance.

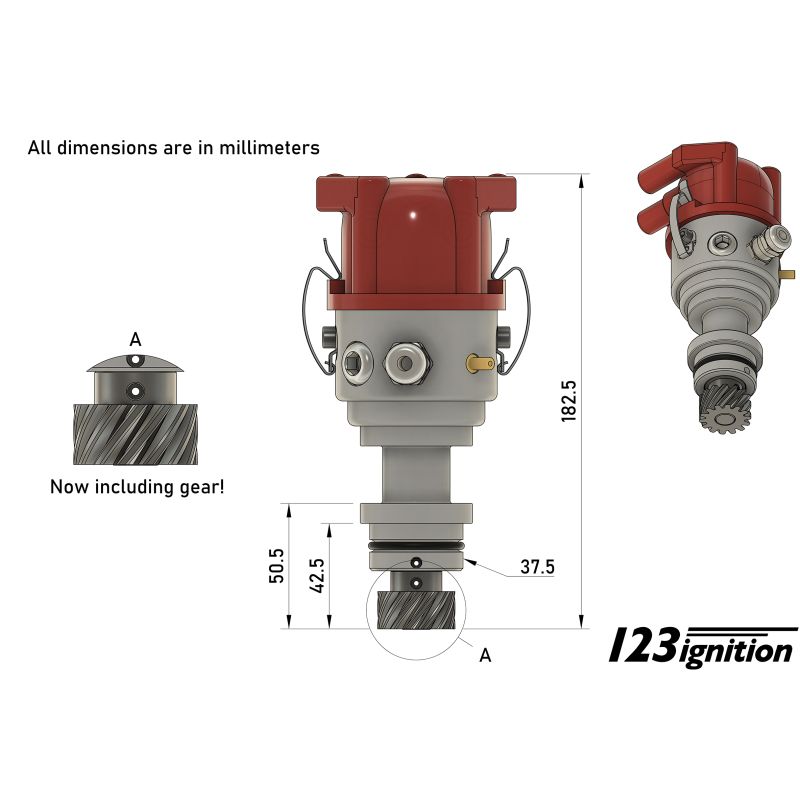

This set is suitable for (we recommend checking the dimensions):
Fiat
- 124 1200 07.66 - 10.73
- 124 1200 124 A.000 02.73 - 07.75
- 124 Familiare 1200 04.67 - 05.73
- 124 Familiare 1200 124 A.000 05.73 - 03.75
- 128 1.1 128 A.000 03.69 - 12.84
- 128 1.1 128 A.048 02.75 - 09.81
- 128 1.3 Sport 128 A1.000 08.74 - 12.84
- 128 Coupe 1.1 128 AC5.000 03.72 - 02.81
- 128 Coupe 1.1 128 AC5.000 08.75 - 02.81
- 128 Coupe 1.3 128 AC.000 03.72 - 12.79
- 128 Coupe 1.3 Berlinetta 128 AC.000 06.75 - 12.79
- 128 Familiare 1.1 128 A.000 10.69 - 10.82
- 128 Familiare 1.1 128 A.048 02.75 - 02.81
- 128 Familiare 1.3 128 A1.000 12.74 - 10.82
- 131 1.3 Mirafiori 131 A6.000 10.74 - 09.81
- 238-SERIE 1.4 09.66 - 06.76
- 238-SERIE 1.4 131 AZ 000/131 BZ 0C0/131 FZ 06.76 - 06.82
- REGATA (138) 70 1.3 138 B2.000 09.83 - 07.86
- REGATA (138) 70 1.3 149 A3.000/149 A7.000 09.83 - 07.89
- REGATA (138) 75 1.5 138 B3.048/138 C3.048 12.83 - 12.87
- REGATA (138) 75 i.e. 1.5 138 C2.048/149 C1.000 07.85 - 07.89
- REGATA (138) 85 1.5 149 A5.000 05.85 - 12.87
- REGATA (138) 85 1.6 149 A.000 10.83 - 06.90
- REGATA Weekend 70 1.3 138 B2.000 01.84 - 07.89
- REGATA Weekend 75 1.5 138 B3.048/138 C3.048 09.84 - 07.89
- REGATA Weekend 75 1.5 i.e. KAT 138 C2.048 12.86 - 07.89
- RITMO Bertone Cabriolet 85 1.5 138 A4.000 01.80 - 07.89
- RITMO Bertone Cabriolet 85 1.5 138 B3.000 03.83 - 12.86
- RITMO I (138A) 70 1.3 149 A3.000/149 A7.000 11.83 - 08.85
- RITMO I (138A) 85 1.5 138 A4.000 01.81 - 09.82
- RITMO II (138A) 70 1.3 138 B2.000 01.83 - 04.85
- RITMO II (138A) 85 1.5 138 B3.000 01.83 - 12.87
- RITMO II (138A) 85 1.5 149 A5.000 08.85 - 05.87
7120
Data sheet
- Cylinders
- 4
- Direction of rotation
- CW/CCW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 8000 rpm
- Temperature
- -30 to 100 Celsius
- Coil
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- With vacuum, also works without when not connected.
- Max. Advance
- 45 degr. crankshaft
- Wiring
- red +6V of +12V, black - coil
