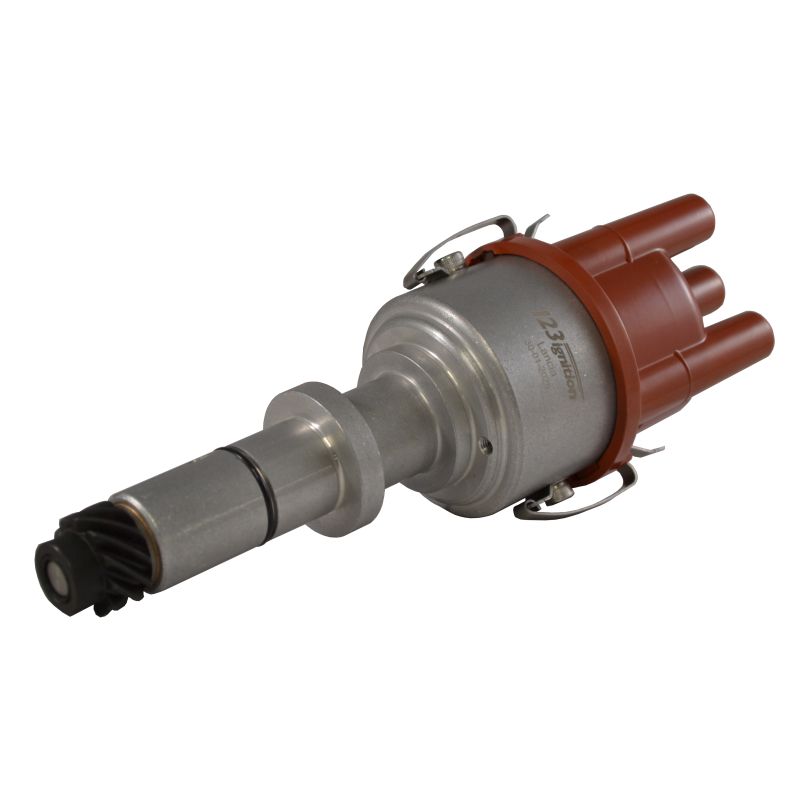

123ignition Lancia-4-R-V-IE for 2000HF Coupe
The 123/Lancia-4-R-V-IE was designed with the help of Lancia enthusiasts. This version for the Lancia 2000HF Coupe has a connection for injection.
The 123/Lancia-4-R-V-IE was designed with the help of Lancia enthusiasts. This version for the Lancia 2000HF Coupe has a connection for injection.
It also offers:
- Automatic dwell
- Automatic power-cut after 1 second
If you want to tune your engine, we've got great news for you: this product is also available in a 123/TUNE+ version! Please read about the 123/TUNE+-4-R-V-Lancia here.
Please read the installation manual carefully. It contains more information about static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.
Note: Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the 123 Red Coil.
Perhaps you'll also need new spark plugs? At Leen APK's we recently added the spark plugs most commonly used in addition with the 123ignitions we offer. See: the spark plugs list.
Data sheet
- Cylinders
- 4
- Direction of rotation
- CW/CCW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 8000 rpm
- Temperature
- -30 to 100 Celsius
- Coil
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- With vacuum, also works without when not connected.
- Max. Advance
- 45 degr. crankshaft

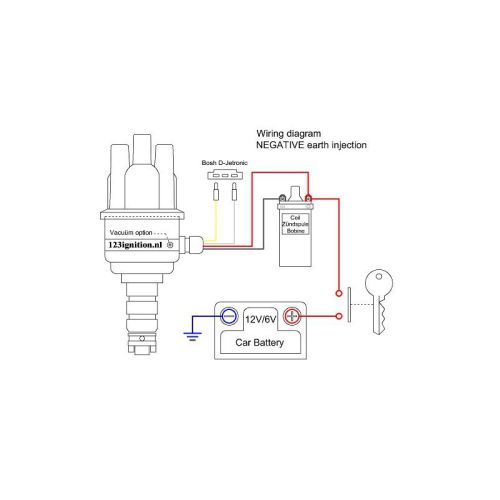

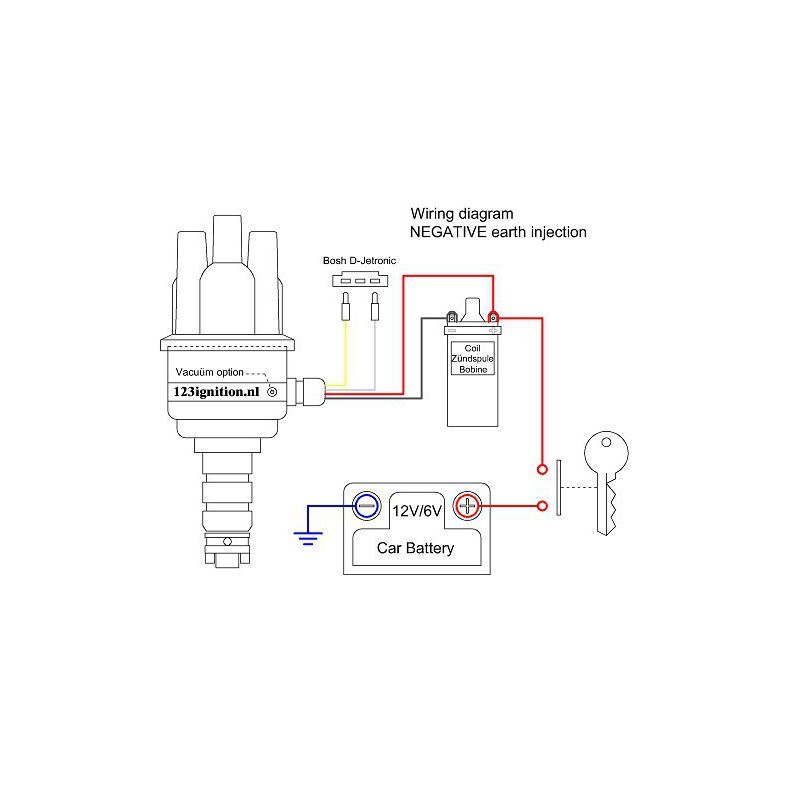

- Wiring
- red +6V of +12V, black - coil
