• Pack
123/MERCEDES-6-R-V complete system for W114 engines

123/MERCEDES-6-R-V complete system for W114 engines

€549.00

Instead of €567.00

VAT included

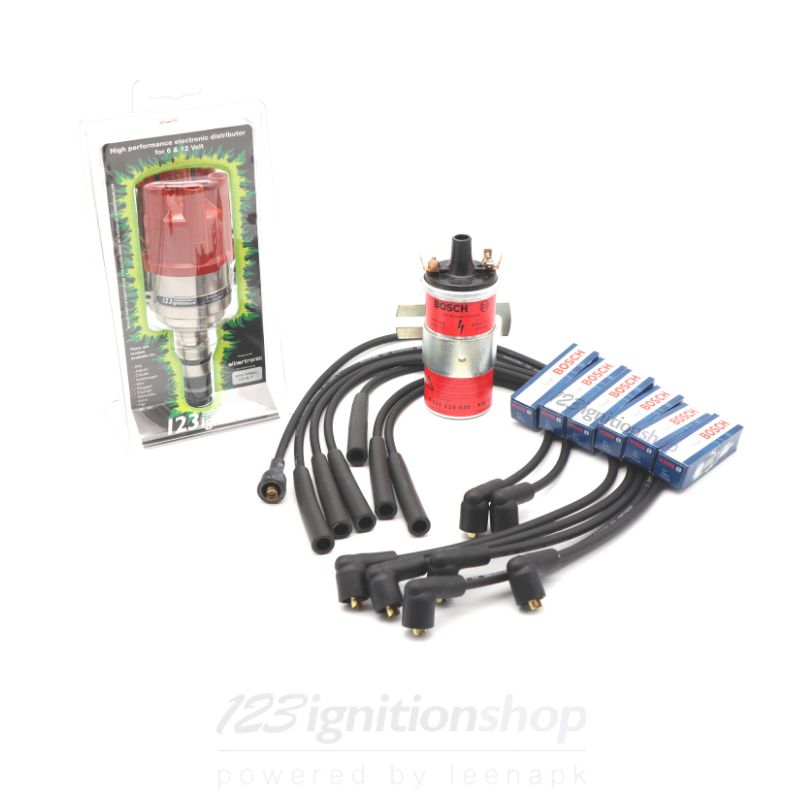

Now all parts in one order: a 123/Mercedes-6-R-V distributor + ignition coil + set of 6 spark plugs + spark plug cables!

This pack contains

Quantity
Add to Compare
In stock

Complete electronic ignition set for a Mercedes W114 engines.

Now all parts in one order: a 123/Mercedes-6-R-V distributor + ignition coil + set of 6 spark plugs + spark plug cables!

Contents of the set

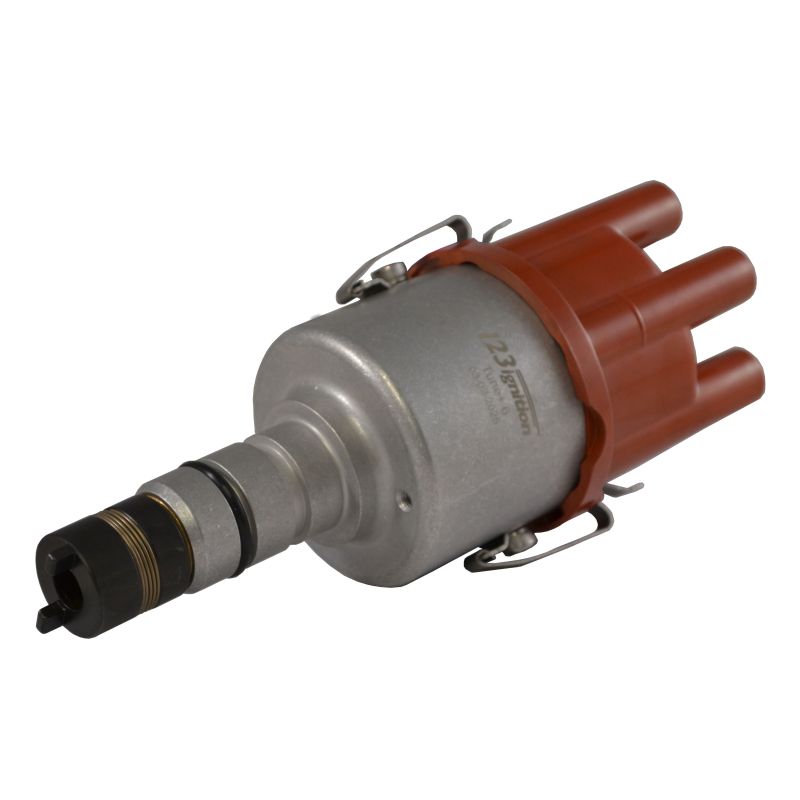

  • The 123/Mercedes-6-R-V is specially designed for 6 cylinder Mercedes W114 engines WITH vacuum advance.

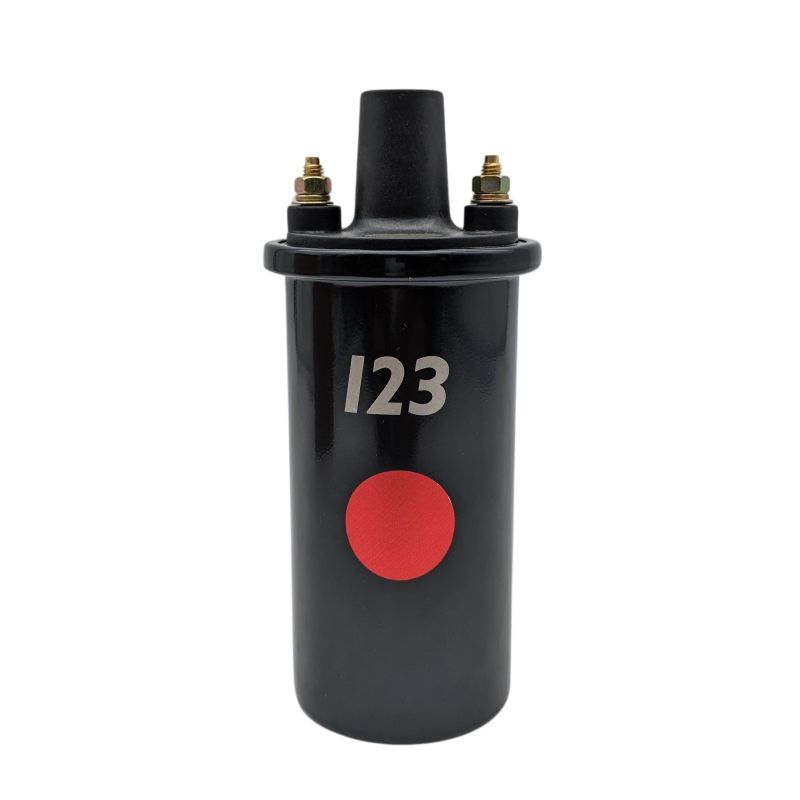

  • Because old ignition coils have often been overheated, a 123 Red Coil is included in this set.

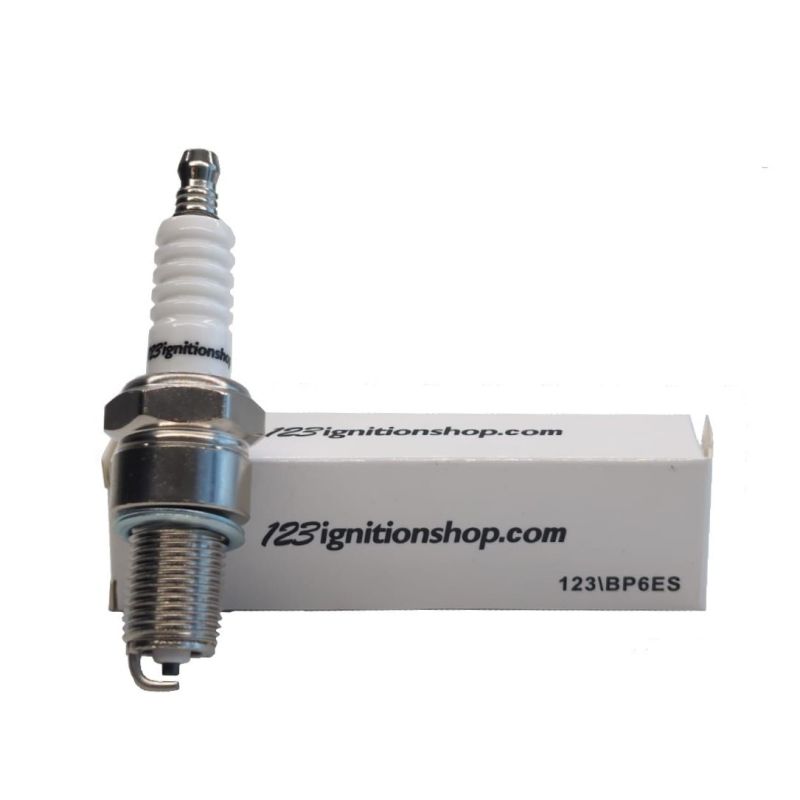

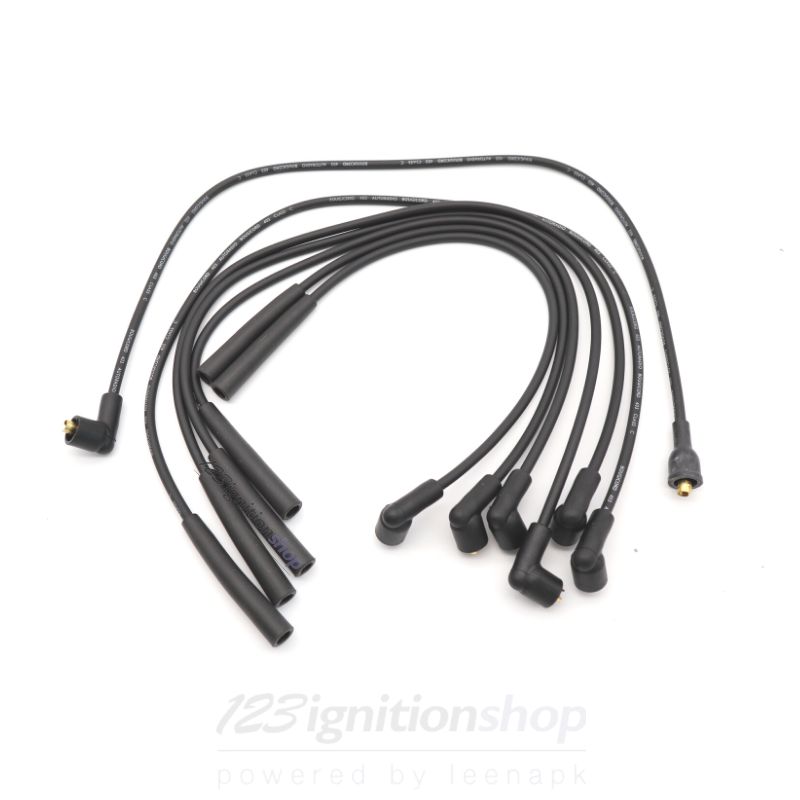

  • A set of 6 spark plugs and spark plug wires have also been added.

Attention points with the 123/Mercedes-6-R-V electronic ignition

This set is suitable for (check the length of the wires):

Mercedes
(W114) 250 M 114.920 01.68 - 08.72
(W114) 250 M 114.920 07.68 - 08.72
Coupe (W114) 250 C M 114.920 04.69 - 06.72
Coupe (W114) 250 CE M 114.980 04.69 - 04.72

For more information about this ignition like the features and installation, please click here.

7125

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft
Wiring
red +6V of +12V, black - coil
