Now in one order: a 123/Porsche-4-R-V distributor + coil + spark plug wires.
NOTE: Check if the sizes of the spark plug cables (55 - 55 - 79 - 79) fit.
If the spark plug cables do not fit, you can order the distributor and coil separately.
Set is suitable for 356/914, however since different spark plugs were used these are not included.
123ignition Porsche-4-R-V system for Porsche 356/914
€499.00
Instead of €509.00
VAT included

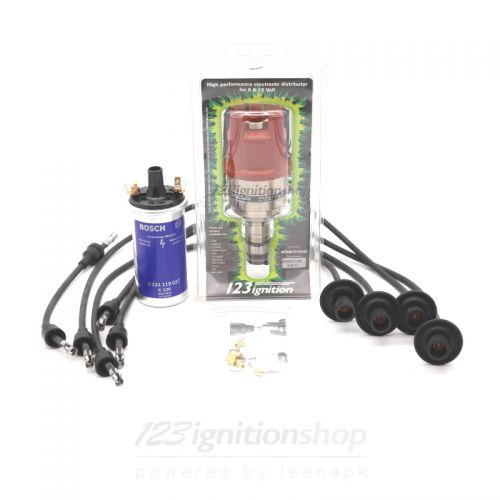

Now in one order: a 123/Porsche-4-R-V distributor + coil + spark plug wires.
NOTE: Check if the sizes of the spark plug cables (55 - 55 - 79 - 79) fit.
If the spark plug cables do not fit, you can order the distributor and coil separately.
Set is suitable for 356/914, however since different spark plugs were used these are not included.
Now in one order: a 123/Porsche-4-R-V distributor + coil + spark plug wires.

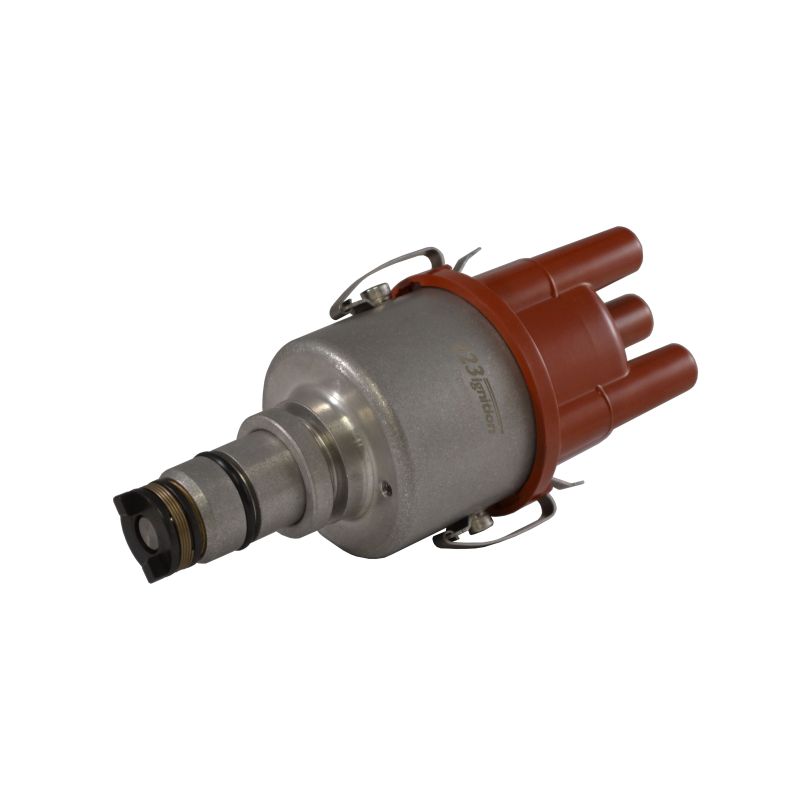

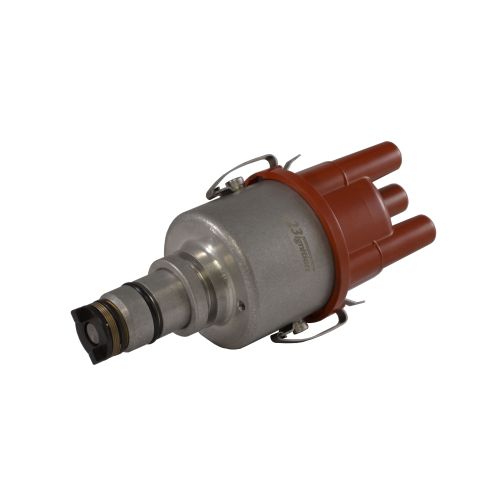

The 123/Porsche-4-R-V is a distributor, specifically intended for 356/914.

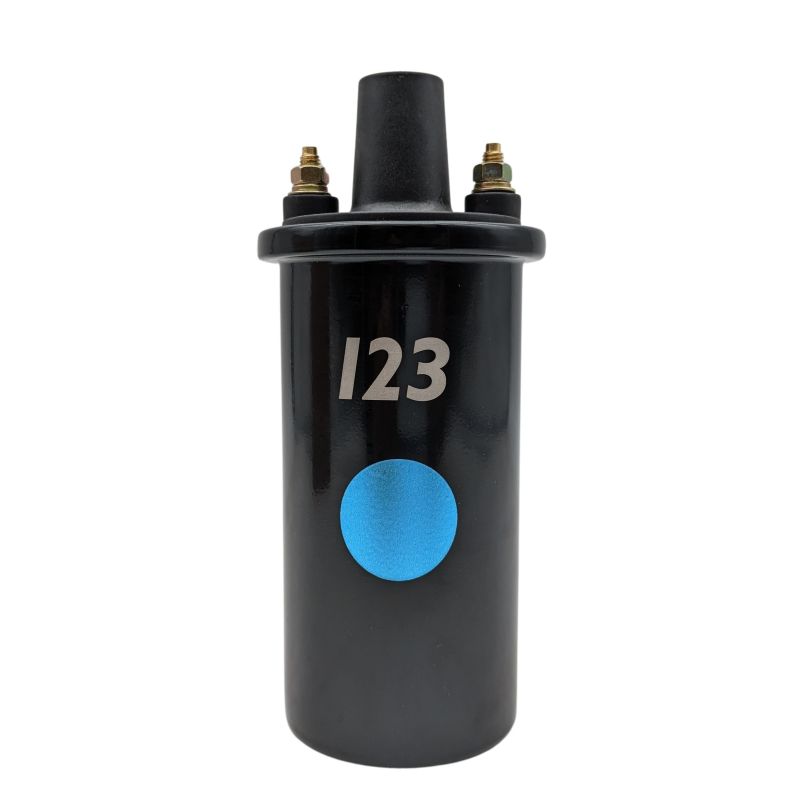

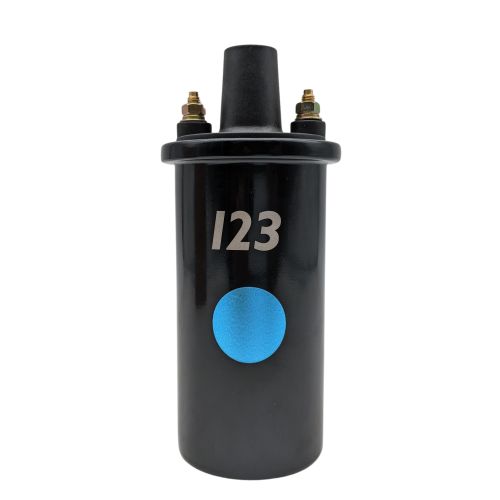

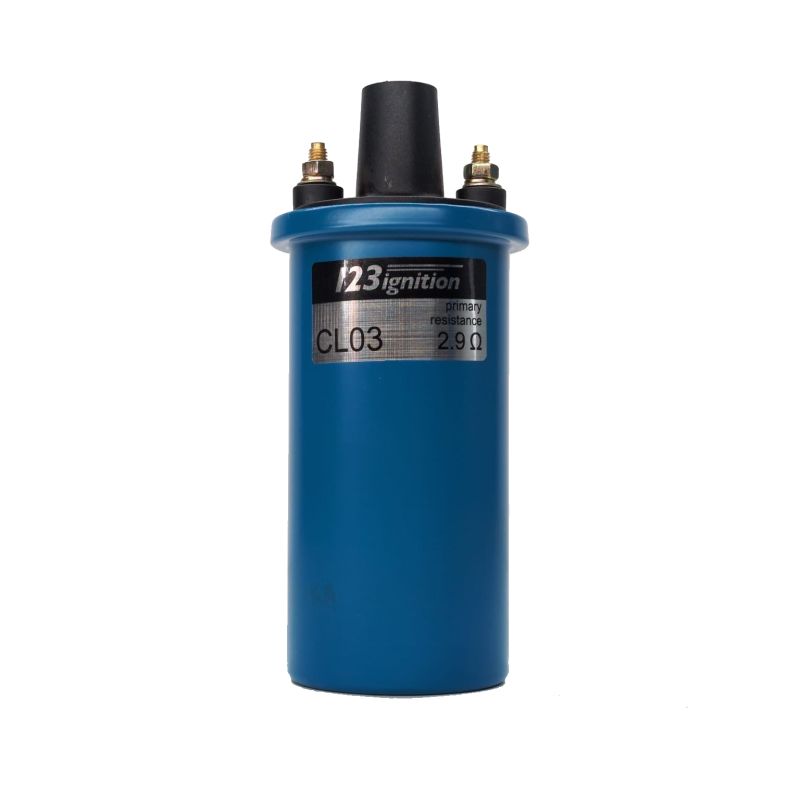

As used coils often were exposed to overheating in the past, the set contains a 123 Red Coil.

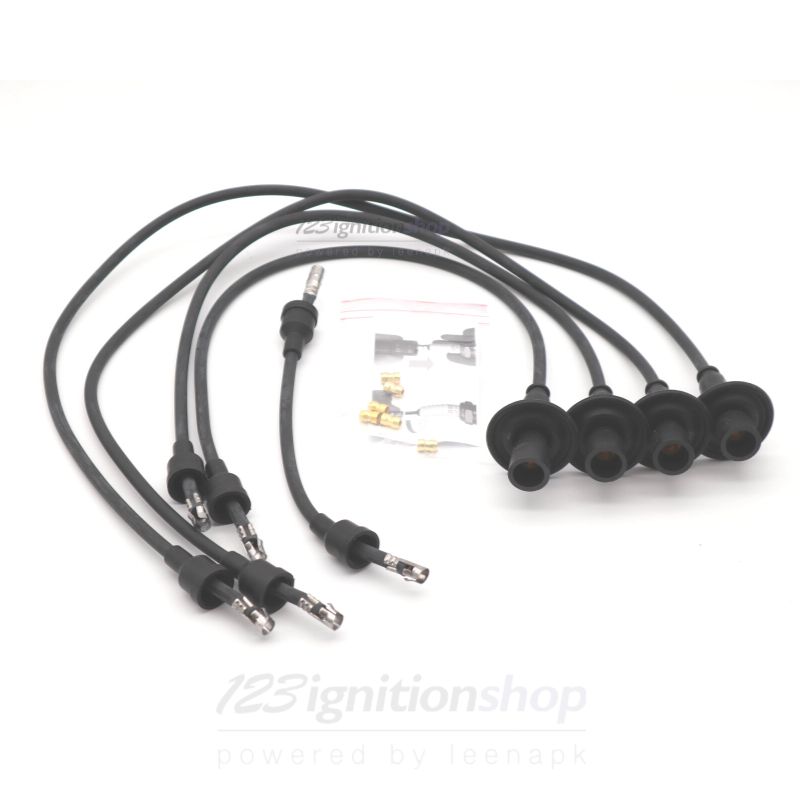

This set also offers new spark plug wires (55 - 55 - 79 - 79). Please note: spark plugs are not included.
Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.
B304
Data sheet
- Cylinders
- 4
- Direction of rotation
- CW/CCW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 8000 rpm
- Temperature
- -30 to 100 Celsius
- Coil
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- With vacuum, also works without when not connected.
- Max. Advance
- 45 degr. crankshaft

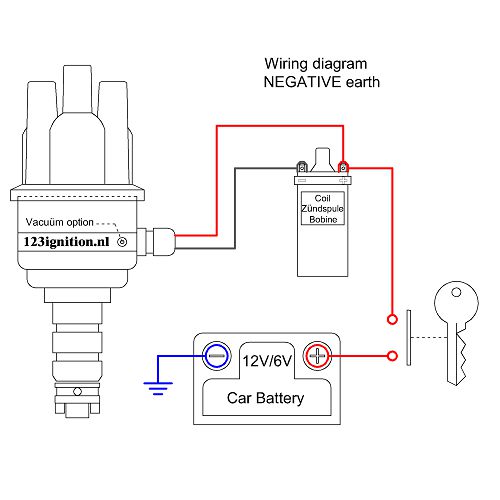

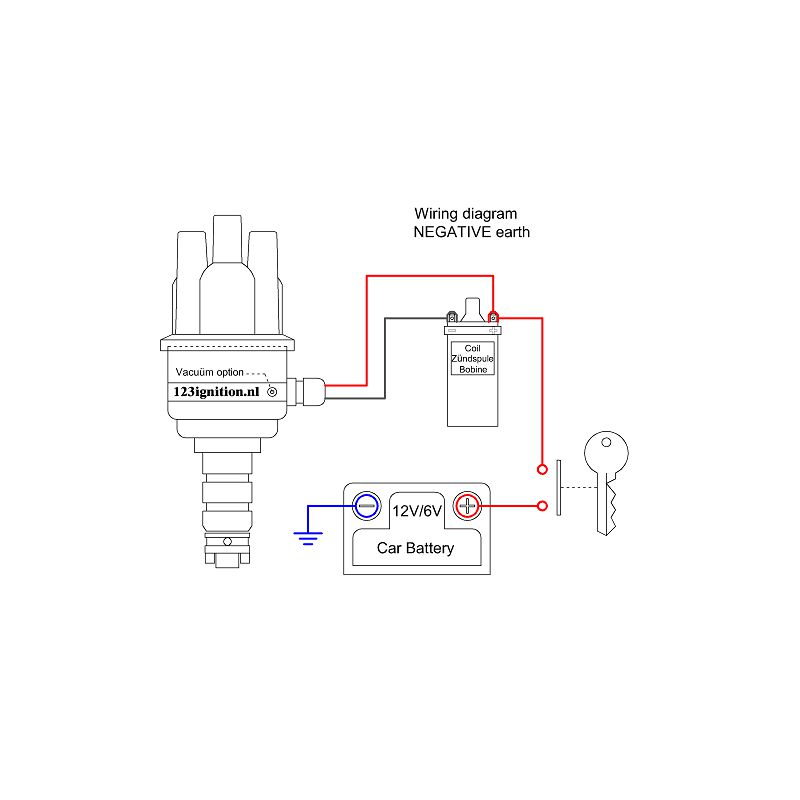

- Wiring
- red +6V of +12V, black - coil
