123/Renault-16-TX-TS-4-R-V for the Renault 807 and 843 engines with vacuum advance

123/Renault16-TX-TS-4-R-V distributor for 807 and 843 engines in Renault 16 TX and 16 TS

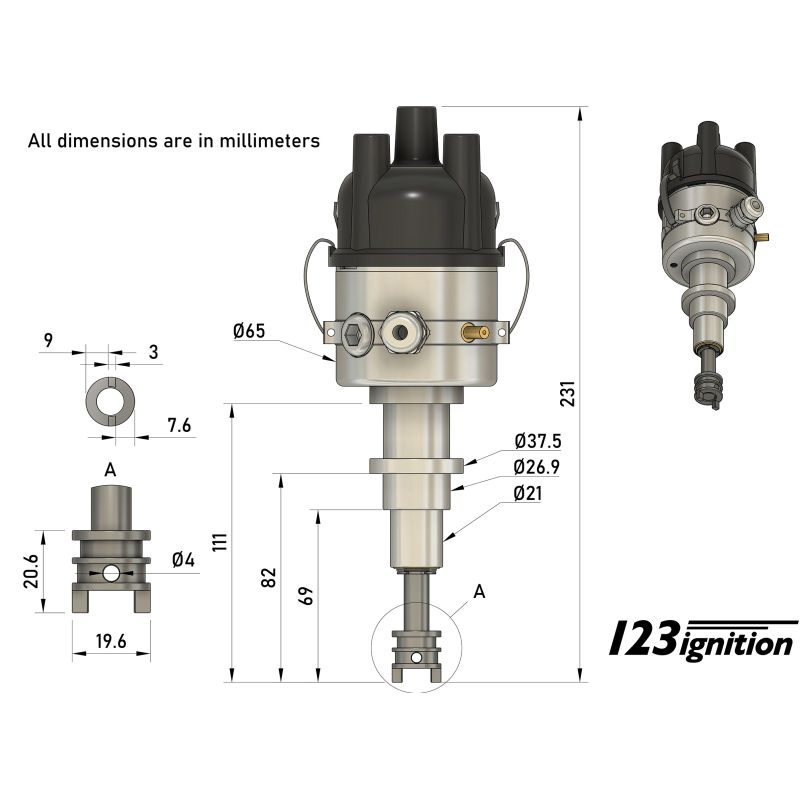

The 123/Renault16-TX-TS-4-R-V is a distributor, specifically targeted for tthe 807 and 843 engines as used in Renault 16 TX and 16 TS (please check dimensions).

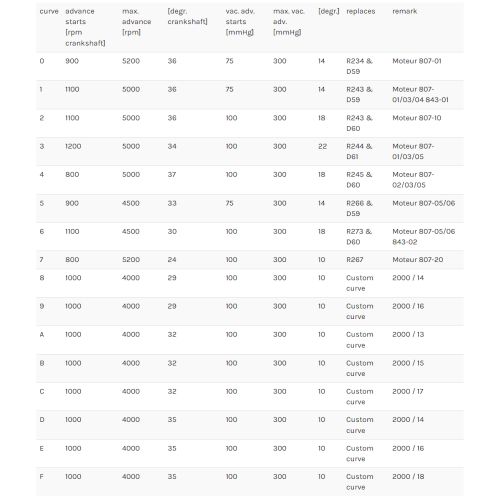

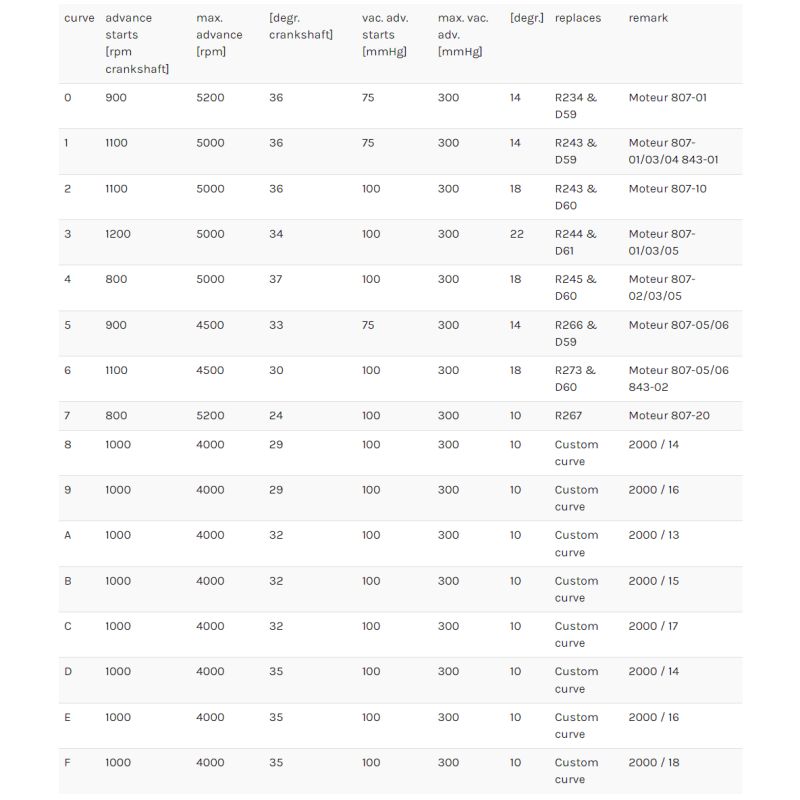

The 123/Renault16-TX-TS-4-R-V contains curves for carbureted-engines as originally specified by Renault. The end-user can select one of 16 different advance-curves by means of a little switch on the side of the distributor-body.

Curve 7 up to F are custom curves to tune with

Features of the 123/Renault16-TX-TS-4-R-V electronic ignition

The 123/Renault16-TX-TS-4-R-V offers:
- Vacuum-advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please note about the 123/Renault16-TX-TS-4-R-V 123ignition

This unit comes with vacuum advance. When you don't need this, you can save yourself some money and choose the version without vacuum, the 123/Renault16-TX-TS-4-R.

If you want to tune your engine, we've got great news for you: this product is also available in a 123/TUNE+ version! Please read about the 123/TUNE+Renault16-TX-TS-4-R-V here.

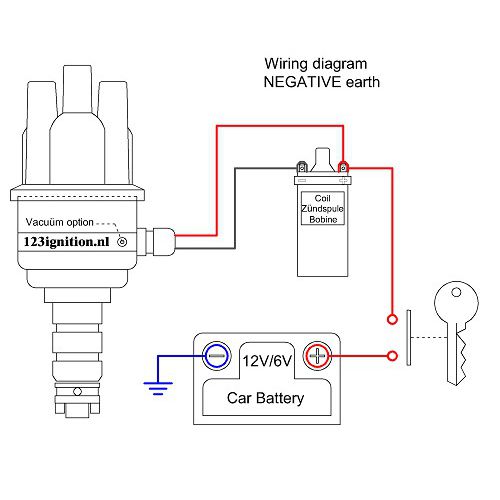

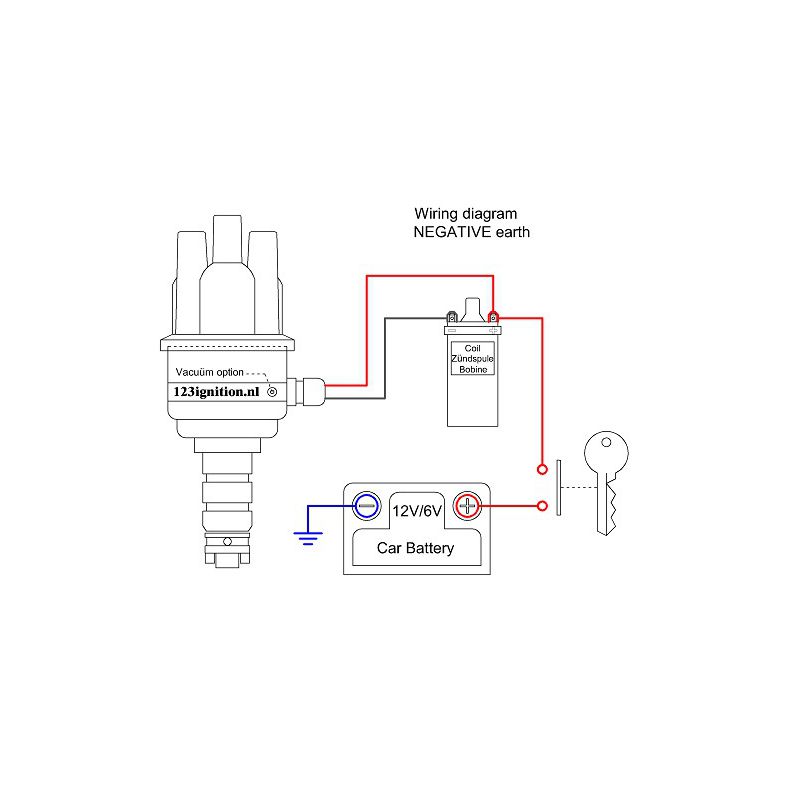

Please read the installation manual carefully. It contains more information about static timing and the advance-curves, the specifications of the 123-ignition and a step-by-step description of the installation procedure.

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the 123 Blue Coil.

Perhaps you'll also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in combination with the 123ignitions we offer. See: the spark plugs list.
