123/TUNE+ 4-A-V-FIAT-TC complete system for Fiat 124

123/TUNE+ 4-A-V-FIAT-TC complete system for Fiat 124

€639.00

Instead of €667.00

VAT included

Now all parts in one order: a 123/TUNE+ FIAT-TC-4-A-V distributor + ignition coil + set of 4 spark plugs + spark plug cables!

This pack contains

Quantity
Add to Compare
In stock

Get it on Google Play Download on the Apple Store

Complete electronic ignition set for a Fiat 124.

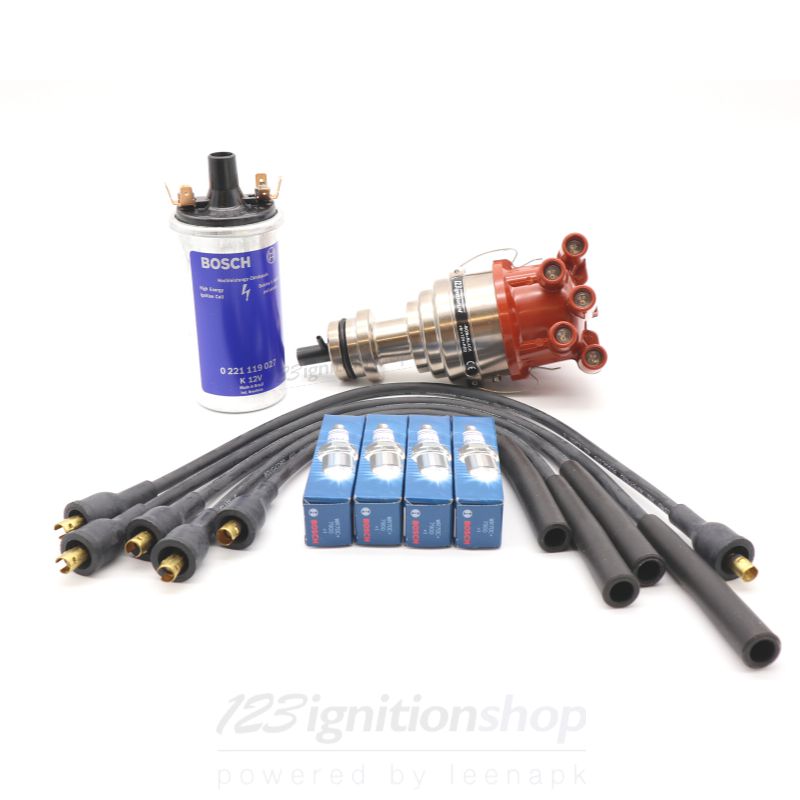

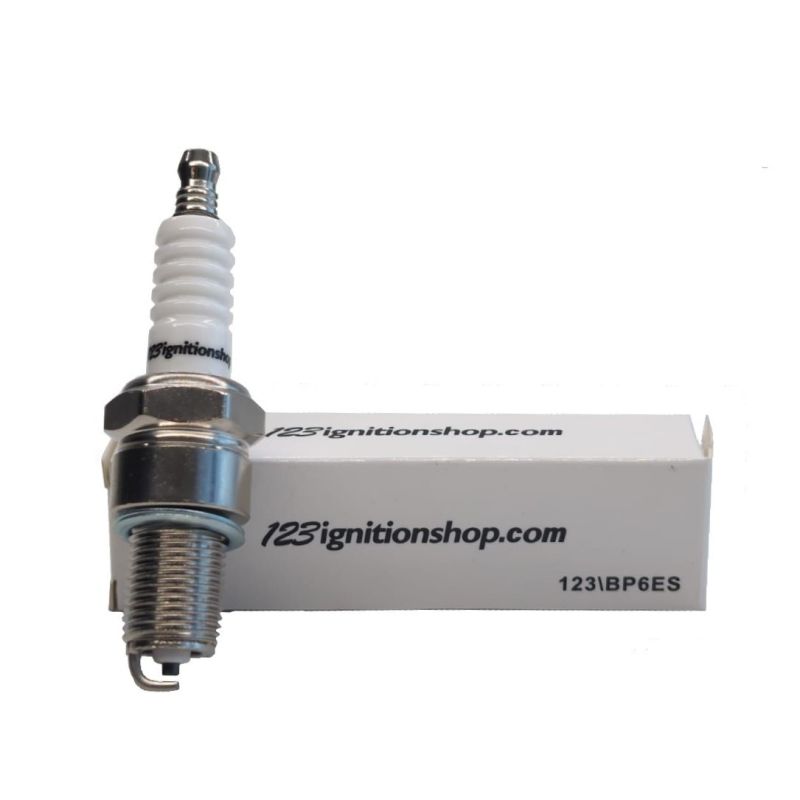

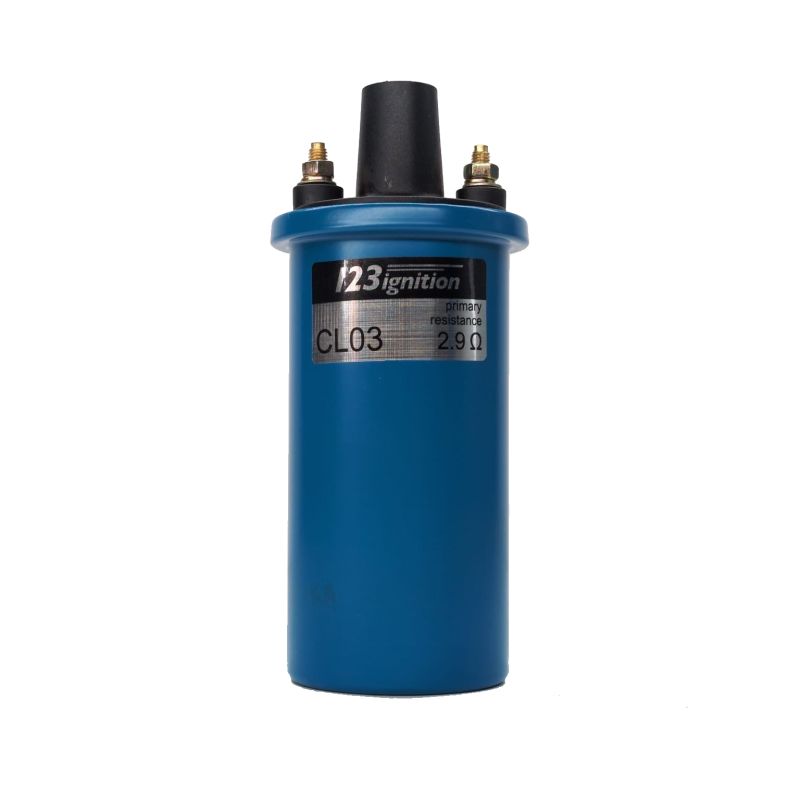

Now all parts in one order: a 123/TUNE+ FIAT-TC-4-A-V distributor + 123 Red Coil + set of 4 spark plugs + spark plug cables!

Contents of the set

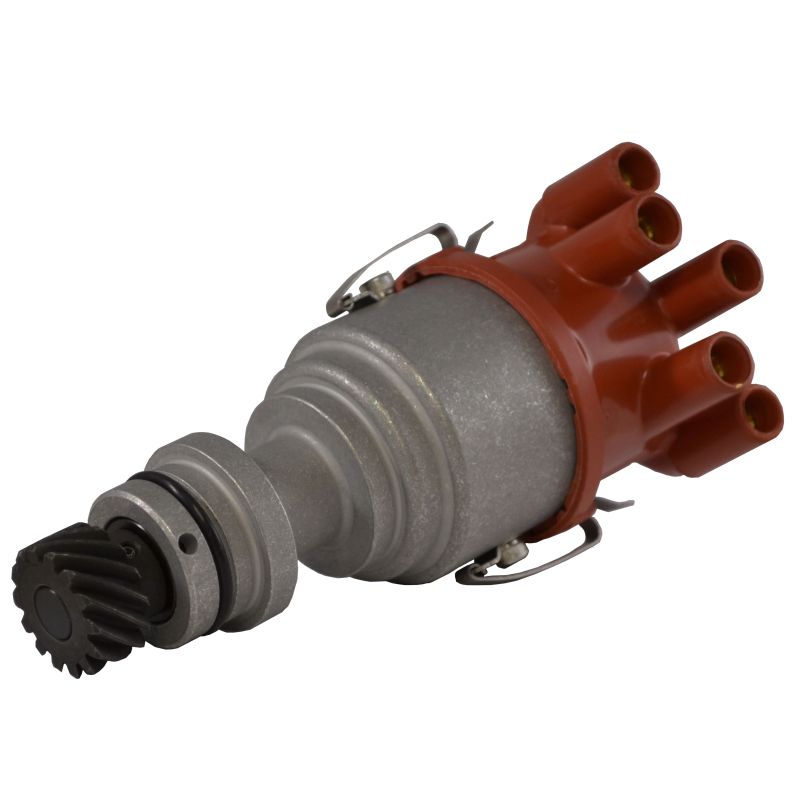

The 123/TUNE+ FIAT-TC-4-A-V is specially designed for 4 cylinder Fiat 124 engines WITH vacuum advance.

This set is suitable for (we recommend checking the dimensions):

Fiat

  • 124 1200 07.66 - 10.73
  • 124 1200 124 A.000 02.73 - 07.75
  • 124 Familiare 1200 04.67 - 05.73
  • 124 Familiare 1200 124 A.000 05.73 - 03.75
  • 128 1.1 128 A.000 03.69 - 12.84
  • 128 1.1 128 A.048 02.75 - 09.81
  • 128 1.3 Sport 128 A1.000 08.74 - 12.84
  • 128 Coupe 1.1 128 AC5.000 03.72 - 02.81
  • 128 Coupe 1.1 128 AC5.000 08.75 - 02.81
  • 128 Coupe 1.3 128 AC.000 03.72 - 12.79
  • 128 Coupe 1.3 Berlinetta 128 AC.000 06.75 - 12.79
  • 128 Familiare 1.1 128 A.000 10.69 - 10.82
  • 128 Familiare 1.1 128 A.048 02.75 - 02.81
  • 128 Familiare 1.3 128 A1.000 12.74 - 10.82
  • 131 1.3 Mirafiori 131 A6.000 10.74 - 09.81
  • 238-SERIE 1.4 09.66 - 06.76
  • 238-SERIE 1.4 131 AZ 000/131 BZ 0C0/131 FZ 06.76 - 06.82
  • REGATA (138) 70 1.3 138 B2.000 09.83 - 07.86
  • REGATA (138) 70 1.3 149 A3.000/149 A7.000 09.83 - 07.89
  • REGATA (138) 75 1.5 138 B3.048/138 C3.048 12.83 - 12.87
  • REGATA (138) 75 i.e. 1.5 138 C2.048/149 C1.000 07.85 - 07.89
  • REGATA (138) 85 1.5 149 A5.000 05.85 - 12.87
  • REGATA (138) 85 1.6 149 A.000 10.83 - 06.90
  • REGATA Weekend 70 1.3 138 B2.000 01.84 - 07.89
  • REGATA Weekend 75 1.5 138 B3.048/138 C3.048 09.84 - 07.89
  • REGATA Weekend 75 1.5 i.e. KAT 138 C2.048 12.86 - 07.89
  • RITMO Bertone Cabriolet 85 1.5 138 A4.000 01.80 - 07.89
  • RITMO Bertone Cabriolet 85 1.5 138 B3.000 03.83 - 12.86
  • RITMO I (138A) 70 1.3 149 A3.000/149 A7.000 11.83 - 08.85
  • RITMO I (138A) 85 1.5 138 A4.000 01.81 - 09.82
  • RITMO II (138A) 70 1.3 138 B2.000 01.83 - 04.85
  • RITMO II (138A) 85 1.5 138 B3.000 01.83 - 12.87
  • RITMO II (138A) 85 1.5 149 A5.000 08.85 - 05.87
7120

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft
Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
