Now all in one order: a 123/TUNE+ Rover-V8 distributor + cogwheel + coil + set of 8 spark plugs + spark plug wires.

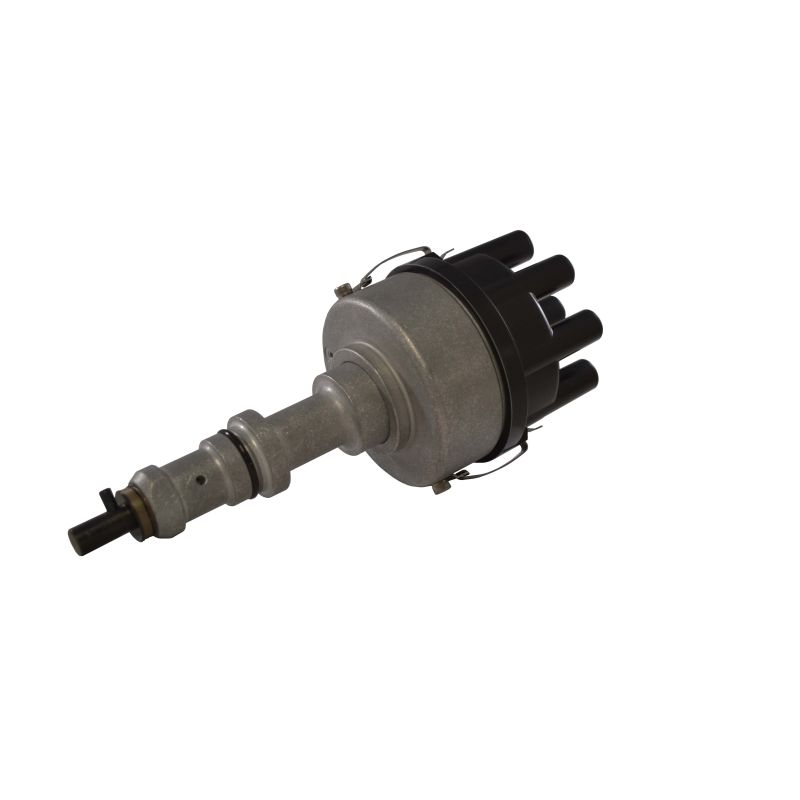

TUNE+ Rover V8 complete system
€885.00
Instead of €908.00
VAT included
Now all in one order: a 123/TUNE+ Rover-V8 distributor + cogwheel + coil + set of 8 spark plugs + spark plug wires.

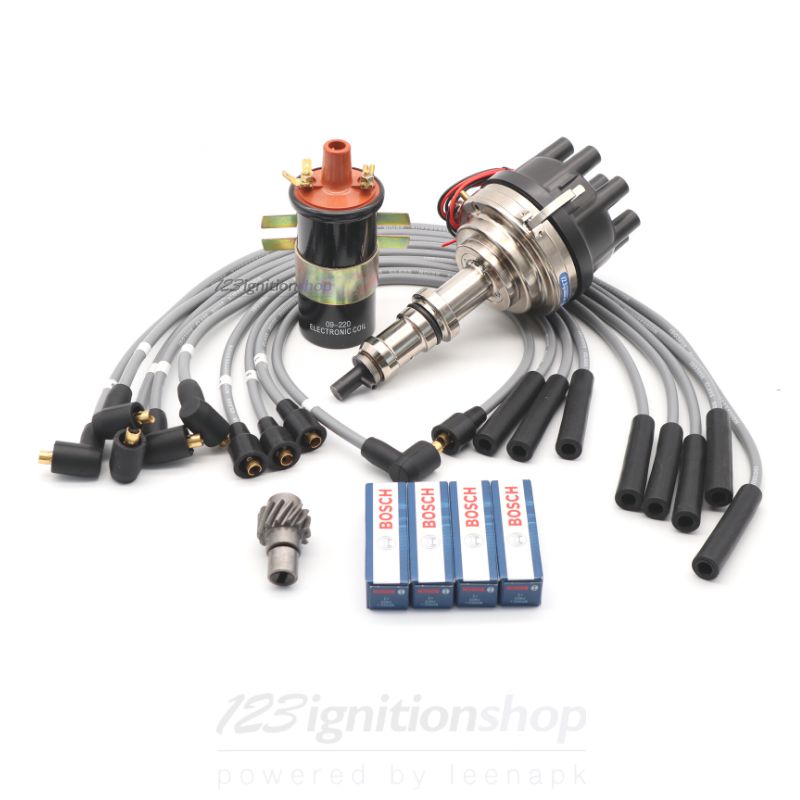

Now all in one order: a 123/TUNE+ Rover-V8 distributor + (mounted) cogwheel + coil + set of 8 spark plugs + spark plug wires.

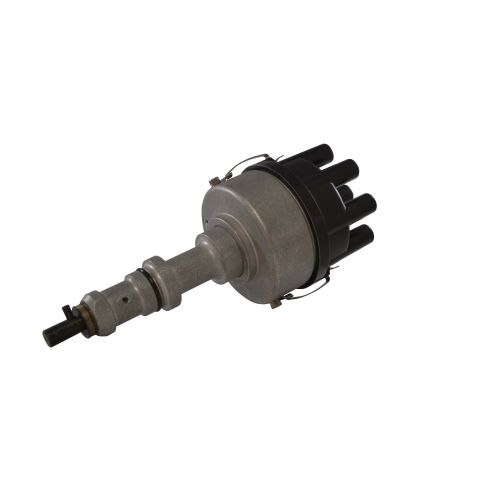

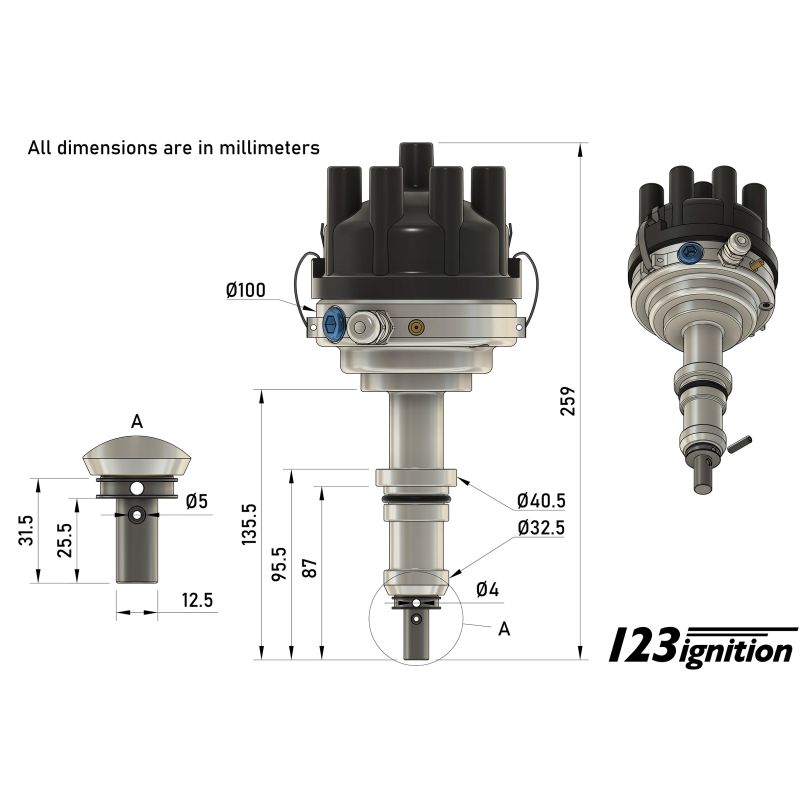

The "Rover-V8" model replaces distributors used in Rover V8 engines (SD1 engines) as produced from 1976 onwards (please check dimensions before ordering).

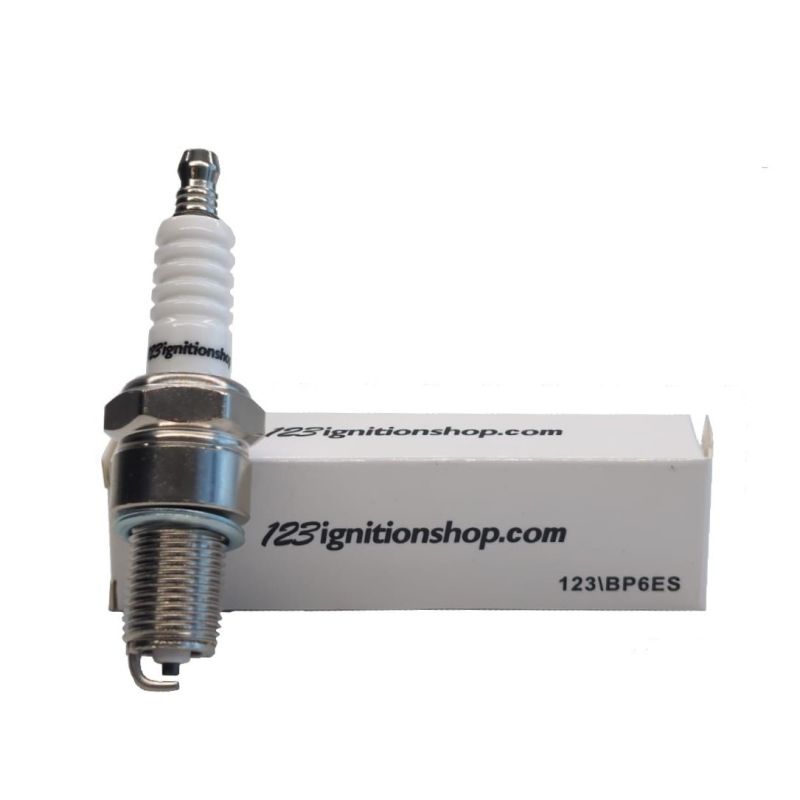

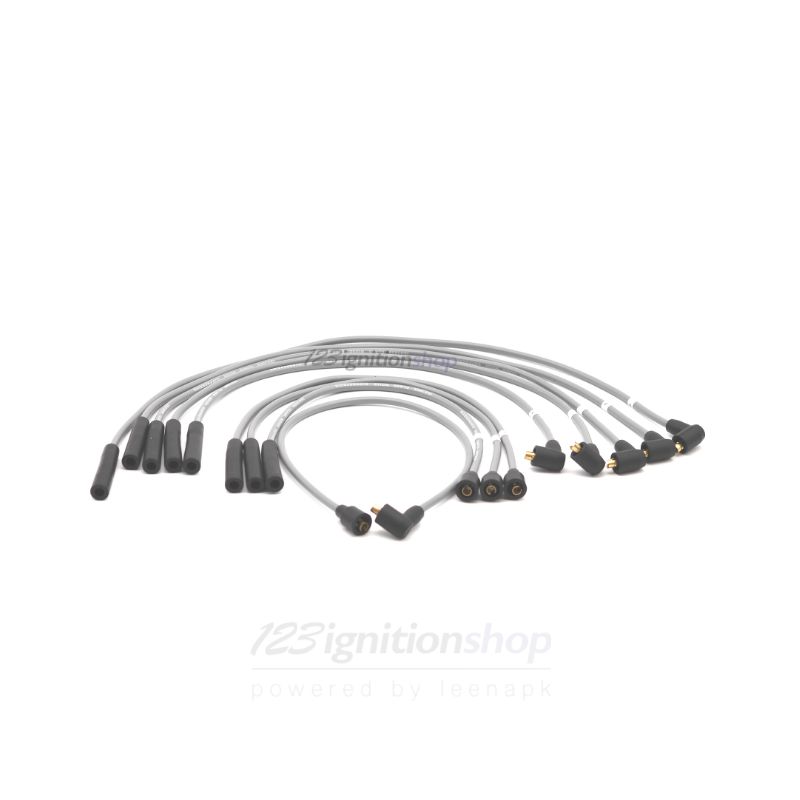

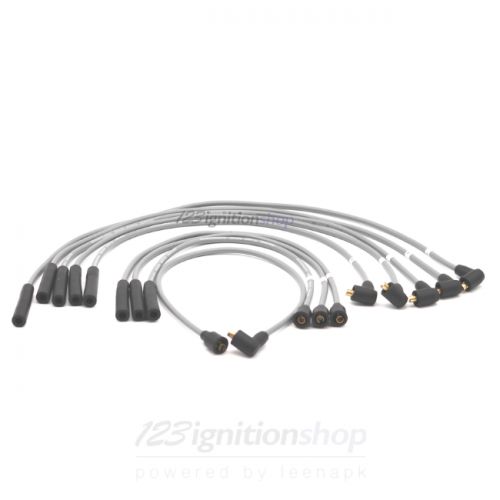

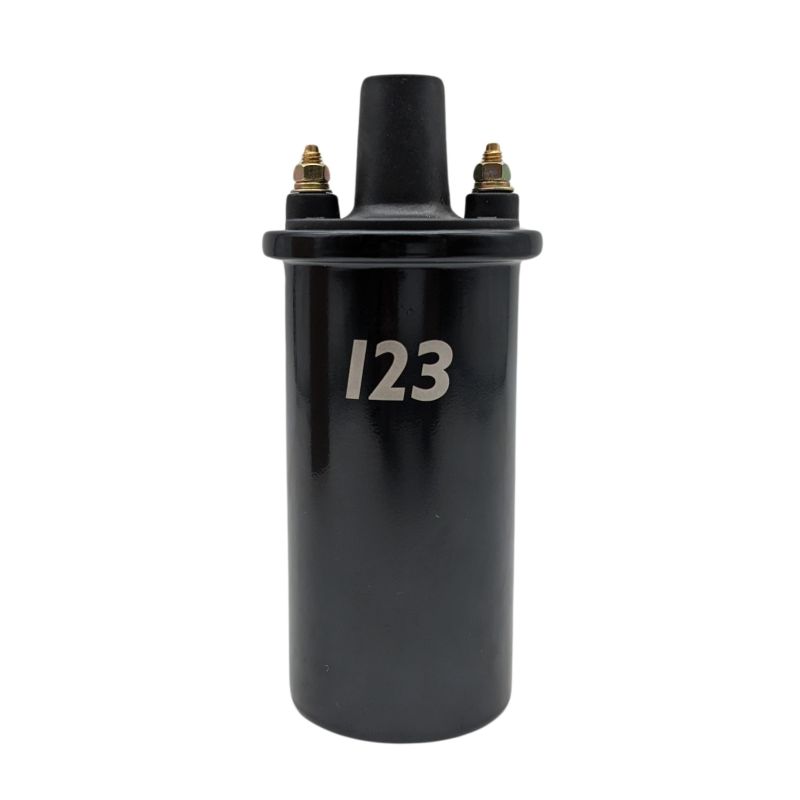

This set also offers a V8 coil, 8 spark plugs and new spark plug wires.
Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.
V8
Data sheet
- Cylinders
- 8
- Direction of rotation
- CW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 8000 rpm
- Temperature
- -30 to 100 Celsius
- Coil

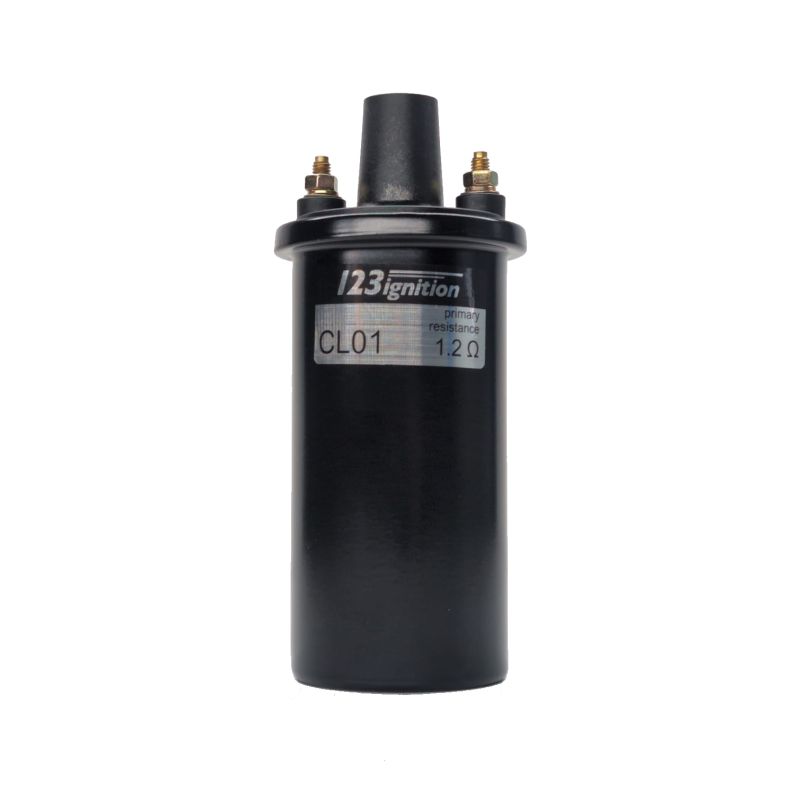

- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- Programmable: -20 / +20 degrees.
- Max. Advance
- 45 degr. crankshaft

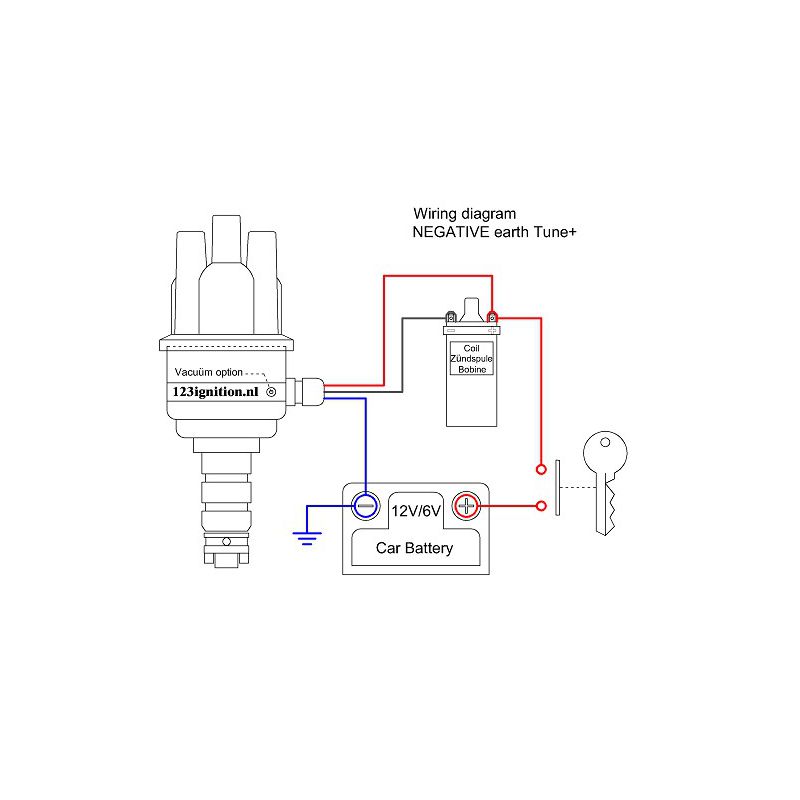

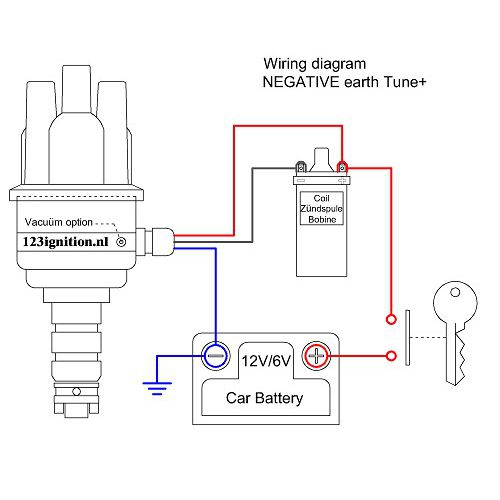

- Wiring

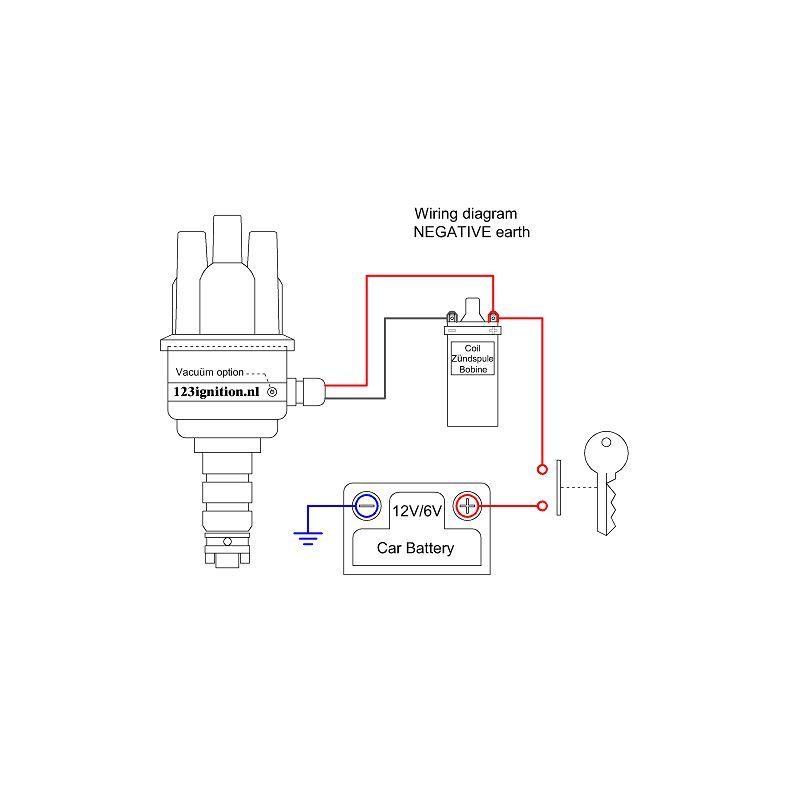

- red +6V or +12V, black '-' ignition coil, blue chassis ground
- Earth type
- Suitable for negative and positive earth systems
- Curve
- Wirelessly programmable with Android or iOS app
