123/B30-R complete system for Volvo B30 boat engine

123/B30-R complete system for Volvo B30 boat engine

€505.00

Instead of €517.00

VAT included

Complete ignition set for your Volvo B30 boat engines as used in Volvo Penta AQ165/AQ170.

This pack contains

Quantity
Add to Compare
In stock

Complete 123ignition system set for Volvo B30

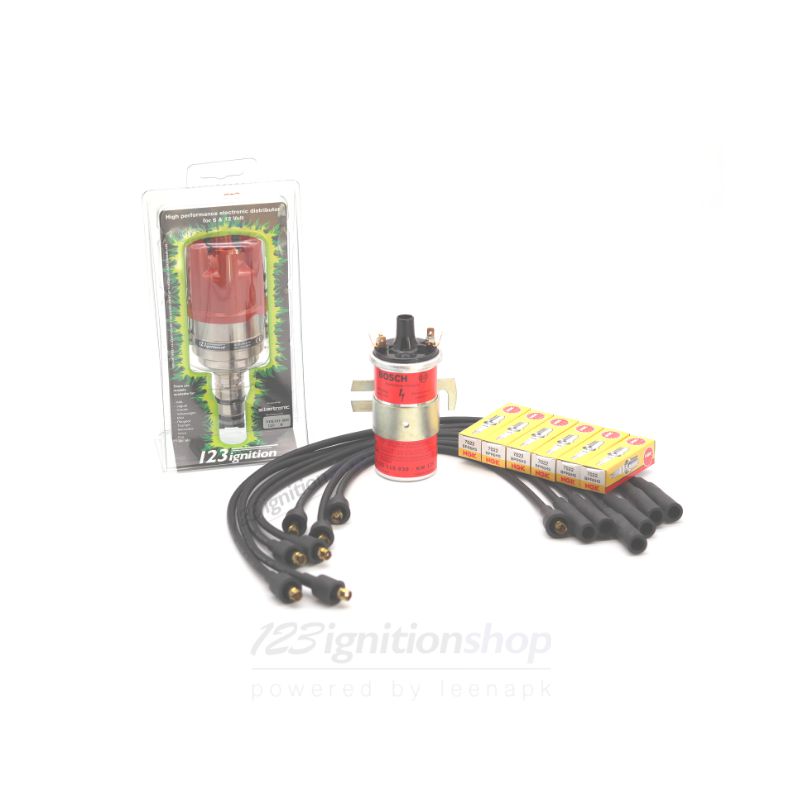

Now all parts in one order: a 123/B30-R distributor + coil + set of 6 spark plugs + spark plug wires.

Content of the 123/B30 ignition set

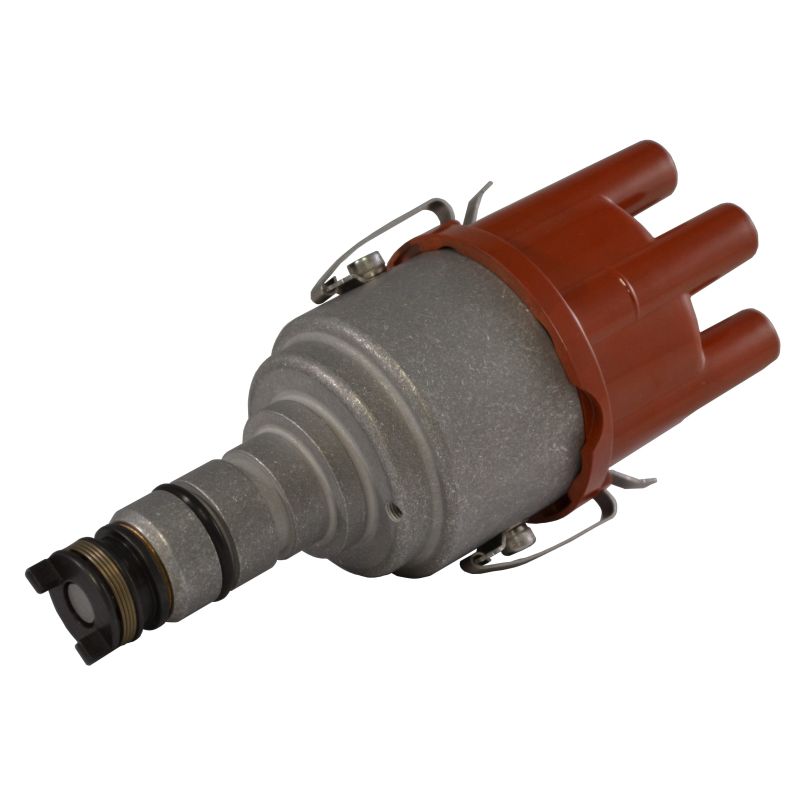

The 123/B30-R is designed for Volvo Penta AQ165/AQ170 is a unit that fits the B30 6 cylinder Volvo boat engines.
It has advance curves for B30-A, B30-E, B30-F, B30-VALP & B30-Penta engines.

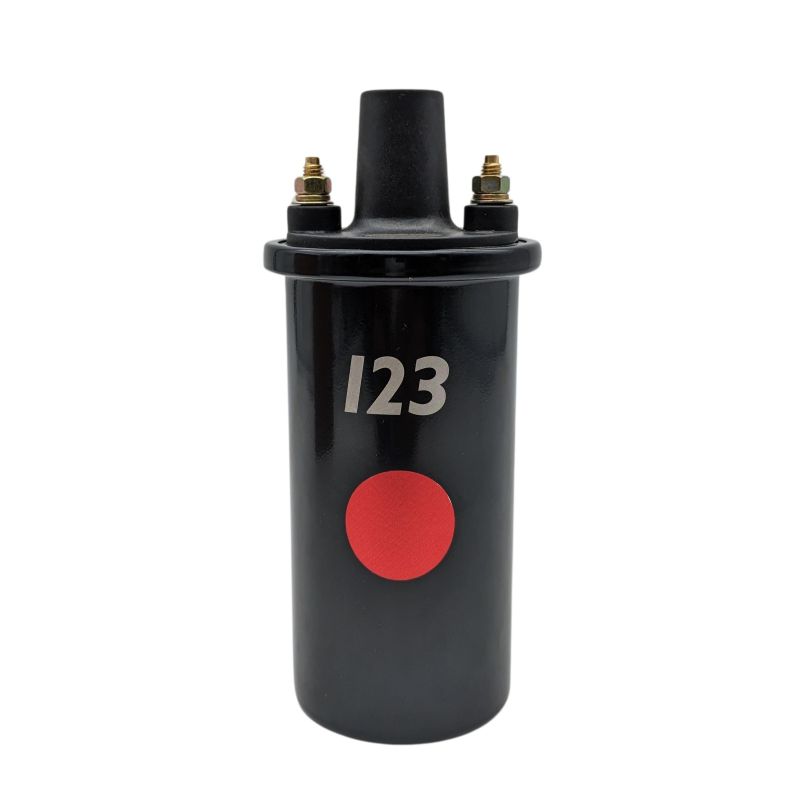

As used coils often were exposed to overheating in the past, the set contains a 123 Red Coil.

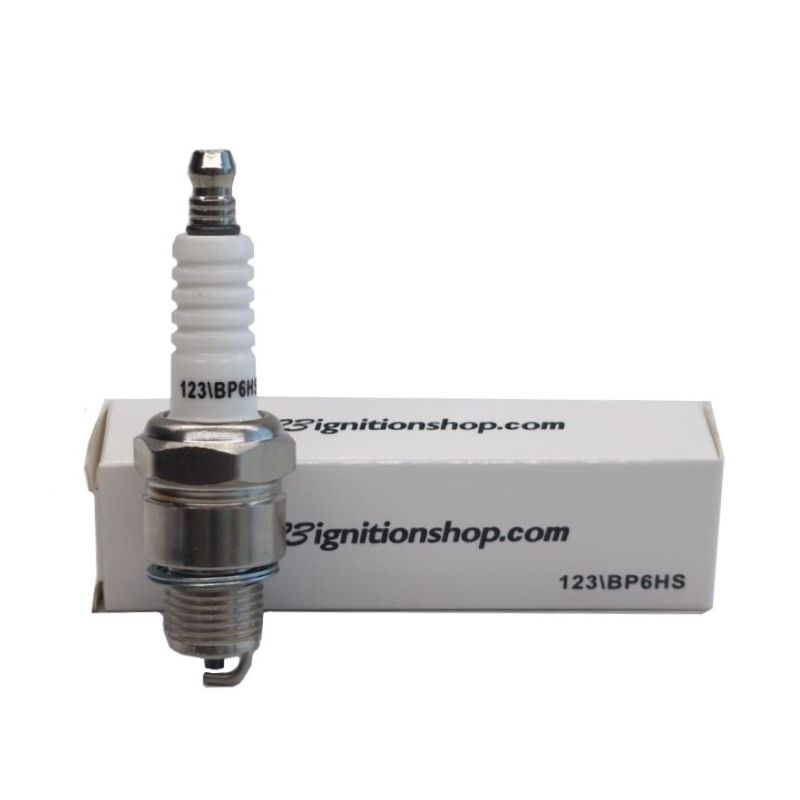

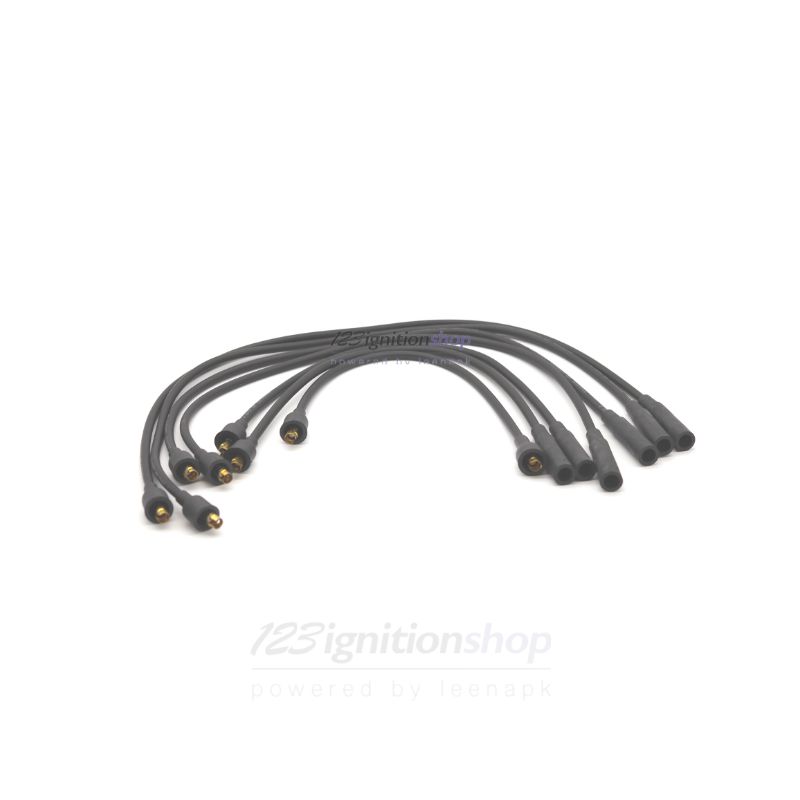

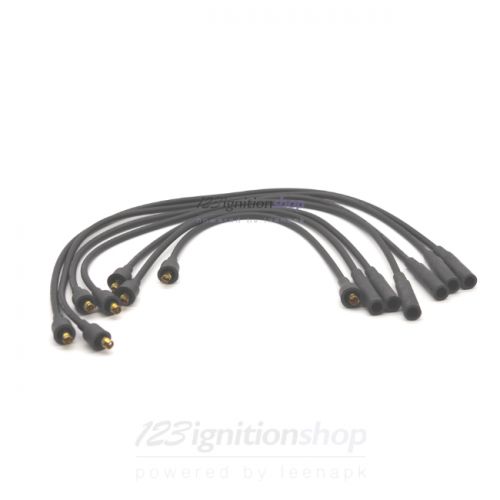

This set also offers 6 spark plugs and new spark plug wires.

Please note about the 123/B30 set

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance curves, the specifications of the 123ignition and a step-by-step description of the installation procedure.

4025

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft
Wiring
red +6V of +12V, black - coil
